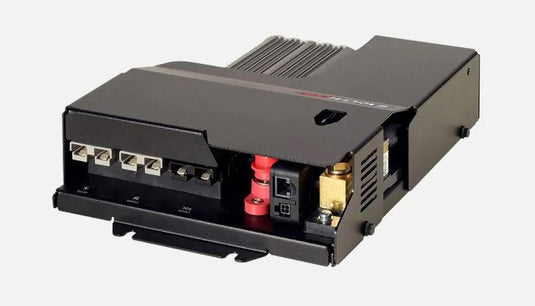

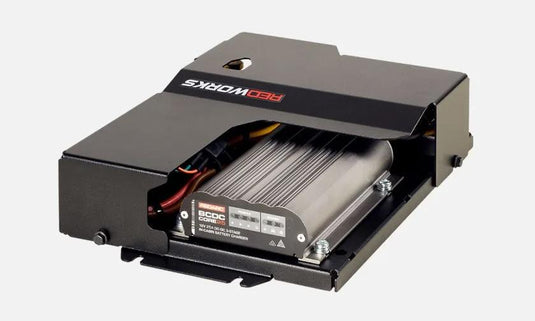

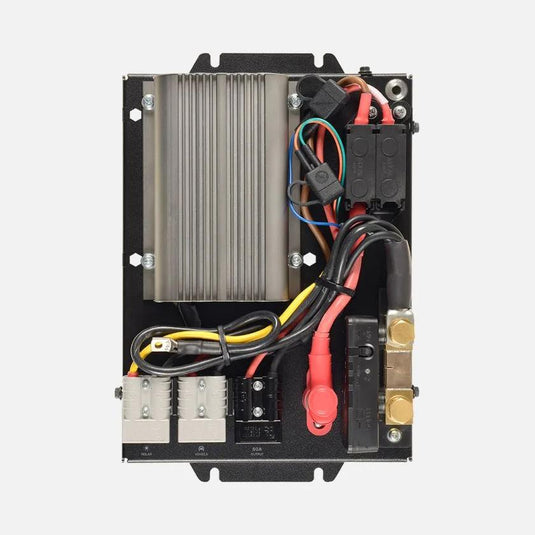

REDARC REDWorks Scout25 Power Panel
The REDARC REDWorks Scout25 Power Panel is a compact, pre-wired dual battery system designed for weekend touring, camping and simple 12V power setups. Featuring the REDARC BCDC Core25 charger and Smart Battery Monitor, it provides reliable alternator and solar charging without the complexity of building a complete system from individual components.
With a footprint approximately the size of an A4 sheet of paper, the Scout25 can be installed behind drawers, beneath seats or inside other confined spaces. It is an ideal solution for powering essential accessories such as portable fridges, camp lighting, air compressors and electric jacks.
Charge While Driving or Camping
The integrated BCDC Core25 provides up to 25A of charging from your vehicle alternator while driving. A built-in MPPT solar regulator also allows compatible portable or fixed solar panels to recharge the auxiliary battery while you are parked.
REDARC Green Power Priority technology can charge from alternator and solar inputs simultaneously while prioritising available solar power to help reduce demand on the vehicle’s alternator.
Smart Battery Monitoring
The included Smart Battery Monitor provides real-time battery information directly to a compatible mobile device. Monitor battery state of charge, estimated remaining runtime and input or output current, helping you understand how much power is available throughout your trip.
Features
- Compact, pre-wired 12V dual battery power panel
- REDARC BCDC Core25 25A in-cabin DC battery charger
- Integrated Smart Battery Monitor
- Alternator and solar charging capability
- Built-in MPPT solar regulator
- Green Power Priority solar technology
- Supports common automotive battery types
- Compatible with standard and heated LiFePO4 batteries
- Easy-access Anderson-style connections
- 50A accessory output for compatible high-draw equipment
- LED charging status and fault indication
- Compact design suitable for confined installation areas
Specifications
- SKU: ICMS-015-001
- Maximum Charging Output: 25A
- Operating Temperature: -15°C to 60°C
- Dimensions: 330mm long x 235mm wide x 76mm high
- Weight: 3.6kg
- Warranty: 2 years
Inclusions
- REDWorks Scout25 pre-wired power panel
- REDARC BCDC Core25 25A battery charger
- REDARC Smart Battery Monitor
Installation Note: Additional wiring, fuses, batteries, solar panels or installation components may be required depending on the vehicle and intended setup. Installation by a suitably qualified auto electrician or 12V technician is recommended.
Frequently Asked Questions
Can the Scout25 charge from solar power?
Yes. The Scout25 includes an MPPT solar regulator and can accept power from a compatible portable or fixed solar panel.
Can it charge while the vehicle is driving?
Yes. The BCDC Core25 can provide up to 25A of charging from the vehicle alternator while driving.
Is the Scout25 suitable for lithium batteries?
Yes. It supports common automotive battery types, including standard and heated LiFePO4 batteries.
What accessories can the Scout25 power?
The 50A accessory output is suitable for compatible 12V equipment such as portable fridges, larger air compressors and electric jacks, subject to the equipment’s power requirements.
