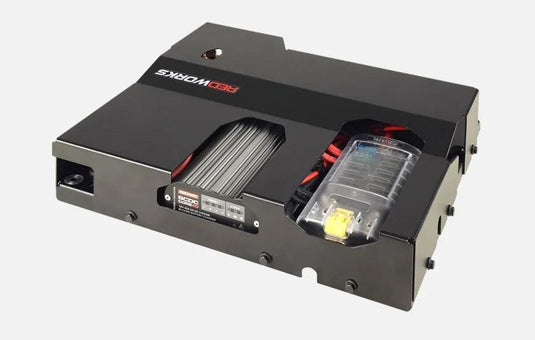

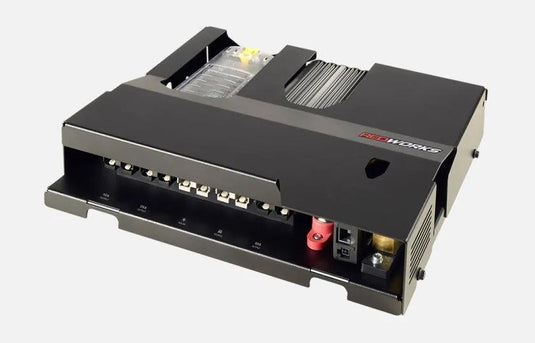

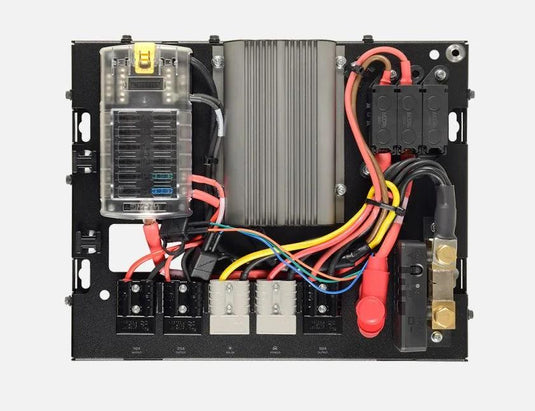

REDARC REDWorks Nomad40 Power Panel
The REDARC REDWorks Nomad40 Power Panel is a pre-wired, scalable dual battery system designed for touring vehicles, caravans, camper trailers and off-grid setups. Combining a BCDC Core40 charger, Smart Battery Monitor and 12-way fuse block, it provides a neat and reliable solution for charging, monitoring and distributing auxiliary battery power.
Ideal for travellers who want to run additional equipment or remain off-grid longer, the Nomad40 can power fridges, lighting, pumps, compressors, awnings and other 12V accessories while keeping the electrical installation organised and protected.
Charge While You Travel
The integrated BCDC Core40 provides 40A DC-to-DC charging from your vehicle and solar simultaneously. Its ultra-efficient MPPT solar regulator maximises available solar energy, while Green Power Priority® automatically prioritises solar input to reduce alternator load and fuel consumption.
Chemistry-specific charging profiles, including lithium compatibility, help deliver the correct charging process for your auxiliary battery. LED indicators provide clear charging status and fault identification.
Real-Time Battery Monitoring
The included Smart Battery Monitor provides accurate battery information directly to your compatible mobile device through the RedVision app. Monitor battery state of charge, estimated runtime remaining and system input and output current, helping you manage your available power with confidence.
Expandable Power Distribution
A centralised 12-way blade fuse block makes it easier to connect, protect and maintain additional accessories. With channels supporting up to 30A, the Nomad40 can grow with your touring setup without requiring extensive rewiring.
Anderson™ Power Outputs
- 10A output: Suitable for USB sockets, cigarette sockets, standard fridges, lighting, pumps and awnings.
- 25A output: Suitable for larger 12V fridges, small ovens and compact compressors.
- 50A output: Suitable for high-power equipment drawing up to 50A, including large compressors, 12V fridges and electric jacks.
Features
- Pre-wired dual battery charging and power distribution system
- 40A charging from vehicle and solar inputs
- Integrated MPPT solar regulator
- Green Power Priority® solar charging
- Battery profiles including lithium compatibility
- Real-time smartphone battery monitoring
- 12-way blade fuse block with channels supporting up to 30A
- Easy-access genuine Anderson™ connectors
- Expandable design for additional 12V accessories
- LED charging status and fault indicators
Specifications
- Product: REDWorks Nomad40 Power Panel
- SKU: ICMS-016-001
- DC-to-DC charger: BCDC Core40, 40A
- Fuse block: 12-way blade fuse block
- Operating temperature: -15°C to 60°C
- Dimensions: 375mm long x 308mm wide x 79mm high
- Weight: 5.3kg
- Warranty: 2 years
- GTIN: 9338628011575
Inclusions
- REDWorks Nomad40 pre-wired power panel
- BCDC Core40 in-cabin 12V 40A battery charger
- Smart Battery Monitor
- 12-way blade fuse block
- 10A, 25A and 50A Anderson™ power connections
Installation note: Additional components may be required to complete the installation. REDARC recommends installation by a suitably qualified auto electrician or technician.
