REDARC Smart Start SBI 24V 100A Redarc

REDARC Smart Start SBI 24V 100A

Redarc

SKU: SBI24

$278.41
$278.41
Sale Sold out
/
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

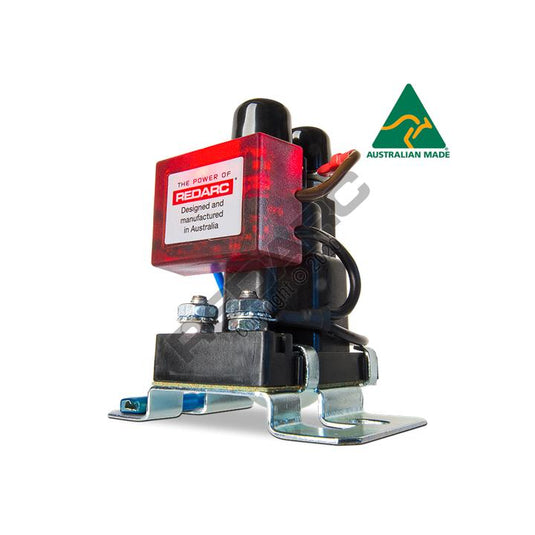

REDARC Smart Start SBI 24V 100A - SBI24

REDARC Smart Start SBI 24V 100A - SBI24. A dual battery isolator used to isolate the start and auxiliary batteries in a dual battery system. It’s a microprocessor-controlled smart battery isolator and will protect the primary battery from a low charge in the secondary battery so it won’t drain the primary battery, while allowing the auxiliary battery to supply non-essential loads. The SBI24 provides 24 volt DC incorporating 100A of continuous ratings. Used in commercial vehicle dual battery systems, it incorporates electronic components preventing the solenoid from generating high voltage transients. It’s used instead of a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions. For installation, a quality fuse kit is recommended.



Features:

  • Overmould design.
  • Compact in size and easy to install.
  • Silver contacts for longer life and suitable for marine applications.
  • Power saving technology.
  • Fault indication.
  • Fully surge protected.
  • 2 year warranty.



Specifications:

  • Max. Inrush current: 400A.
  • Max. Continuous current: 100A.
  • Turn on voltage: 26.4V.
  • Turn off voltage: 25.4V.
  • Turn on delay: 5 seconds.
  • Turn off delay: 10 seconds.
  • Standby current: <5mA.
  • System voltage: 24V.
  • Output voltage: 24V DC.
  • Input fuse rating: 100A.
  • Output fuse rating: 100A.



Dimensions:

  • Height (mm): 70
  • Width (mm): 75
  • Depth/Length (mm): 80
  • Weight (g): 200
Description

REDARC Smart Start SBI 24V 100A - SBI24

REDARC Smart Start SBI 24V 100A - SBI24. A dual battery isolator used to isolate the start and auxiliary batteries in a dual battery system. It’s a microprocessor-controlled smart battery isolator and will protect the primary battery from a low charge in the secondary battery so it won’t drain the primary battery, while allowing the auxiliary battery to supply non-essential loads. The SBI24 provides 24 volt DC incorporating 100A of continuous ratings. Used in commercial vehicle dual battery systems, it incorporates electronic components preventing the solenoid from generating high voltage transients. It’s used instead of a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions. For installation, a quality fuse kit is recommended.



Features:

  • Overmould design.
  • Compact in size and easy to install.
  • Silver contacts for longer life and suitable for marine applications.
  • Power saving technology.
  • Fault indication.
  • Fully surge protected.
  • 2 year warranty.



Specifications:

  • Max. Inrush current: 400A.
  • Max. Continuous current: 100A.
  • Turn on voltage: 26.4V.
  • Turn off voltage: 25.4V.
  • Turn on delay: 5 seconds.
  • Turn off delay: 10 seconds.
  • Standby current: <5mA.
  • System voltage: 24V.
  • Output voltage: 24V DC.
  • Input fuse rating: 100A.
  • Output fuse rating: 100A.



Dimensions:

  • Height (mm): 70
  • Width (mm): 75
  • Depth/Length (mm): 80
  • Weight (g): 200
