REDARC RedVision Essentials Display DISP4000

REDARC RedVision Essentials Display - DISP4000

The REDARC RedVision Essentials Display gives you a simple, easy-to-read view of your battery status without needing to open an app or interpret volts, amps or watts. Designed as a clear “fuel gauge” for your auxiliary battery system, the Essentials Display shows battery state of charge in a bright, uncluttered layout, making it ideal for 4WDs, caravans, campers, touring vehicles and off-grid power setups.

Powered by the REDARC Smart Battery Monitor, this compact display provides instant battery visibility and integrates easily with new or existing REDARC power systems using R-Bus connectivity. It is a practical upgrade for anyone wanting fast, reliable battery information from inside the vehicle, canopy, caravan or camper.

Key Features

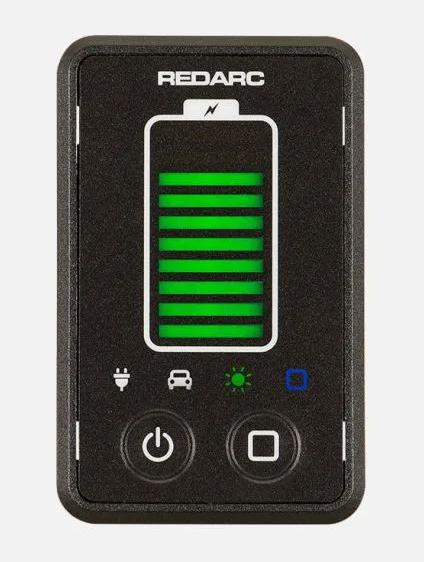

• Bright, simple display for clear battery status monitoring
• Shows accurate battery State of Charge in easy 10-bar increments
• Displays connected and active charging sources including vehicle, solar and AC
• No phone required for quick battery visibility
• R-Bus connection for easy integration with compatible REDARC products
• Bluetooth pairing can be enabled directly from the display
• Adjustable screen brightness from the display
• Start Battery Recovery control available when paired with compatible systems
• Compact design for neat installation in 4WDs, caravans and touring setups
• Australian made and built for demanding touring conditions

Simple Battery Monitoring

The RedVision Essentials Display removes the guesswork from battery monitoring. Instead of complicated data, it provides a straightforward visual indication of how much power is left and where charge is coming from. This makes it easier to manage fridges, lighting, inverters and other 12V accessories while travelling or camping.

Easy Installation & Setup

Installation is simple, requiring a 51mm hole saw and the supplied screws. The R-Bus connection makes it easy to add the display to compatible REDARC systems, whether you are building a new 12V setup or upgrading an existing one.

System Compatibility

The REDARC RedVision Essentials Display must be used with the REDARC Smart Battery Monitor BSEN500. It can be used as a single display or added to an existing system that already includes the BSEN500.

Specifications

• SKU: DISP4000
• GTIN: 9338628011711
• Operating Voltage: 9 to 32V DC
• Operating Current: <250mA
• Operating Temperature: -20°C to 75°C
• Weight: 75g
• Height: 23.98mm
• Width: 63.04mm
• Depth / Length: 99.97mm
• Warranty: 2 Years

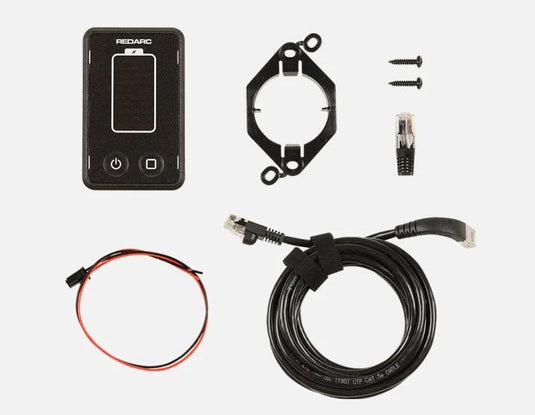

Inclusions

• REDARC RedVision Essentials Display
• Mounting screws

Important Note

This display requires the REDARC Smart Battery Monitor BSEN500 to operate. Professional installation by a qualified auto electrician or technician is recommended.

FAQ

Does the REDARC RedVision Essentials Display work by itself?

No. The display must be paired with the REDARC Smart Battery Monitor BSEN500.

Can I use this display without my phone?

Yes. The display provides battery status directly on the screen, so you do not need to open an app to check your battery level.

What charging sources can it show?

It can show connected and active power sources such as vehicle charging, solar and AC charging when used with a compatible system.

Is it suitable for 4WD and caravan use?

Yes. Its compact size, clear display and REDARC system compatibility make it suitable for 4WD touring, caravans, campers and off-grid 12V power systems.
