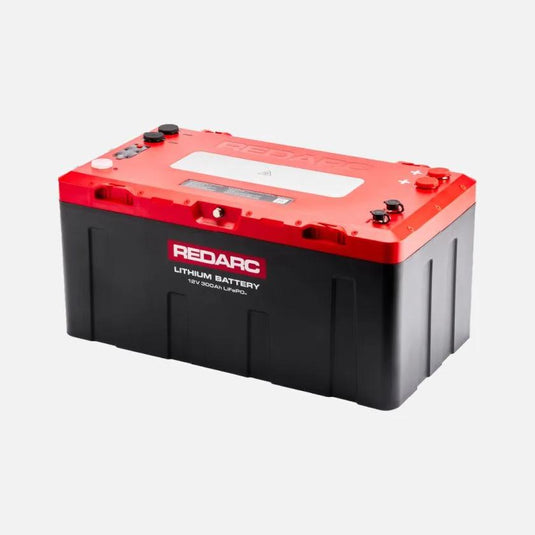

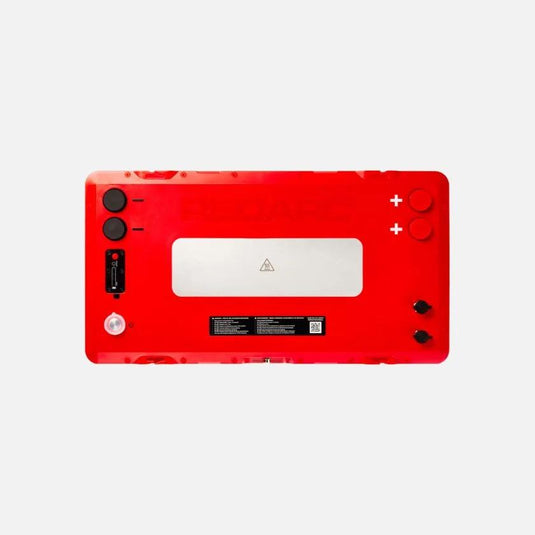

REDARC REDLAB Icon 300Ah Lithium Battery
Power your 4WD adventures and off-grid stays with 300Ah of usable capacity. The REDARC REDLAB Icon supports demanding electrical setups, combining high-current performance with compatibility across REDARC BCDC chargers, Manager systems and inverters.
Features
- 100% usable capacity and 6,000+ charge cycles.
- IP67 dust and water protection with vibration-resistant construction.
- Internal heating for below-zero charging.
- Built-in display for charge level and faults.
- Isolation switch with fault-reset functionality.
- Independently verified to IEC 62619:2022.
Specifications
- Part number: LBATN12300
- Chemistry: Lithium
- Capacity: 300Ah
- Charge current: 300A
- Continuous discharge: 300A
- Recommended charging voltage: 14.2V
- Operating temperature: -20°C to 60°C
- Dimensions: 500 × 265 × 232mm (L × W × H)
- Weight: 37kg
- Warranty: 3 years
Inclusions
- 1 × REDARC REDLAB Icon 300Ah lithium battery.
Frequently Asked Questions
Can I connect multiple batteries?
Yes. Supports up to four in parallel or two in series for 24V applications.
