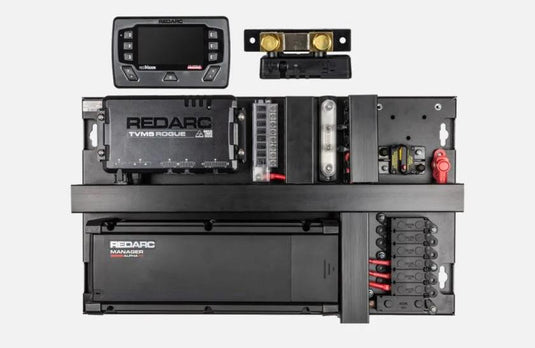

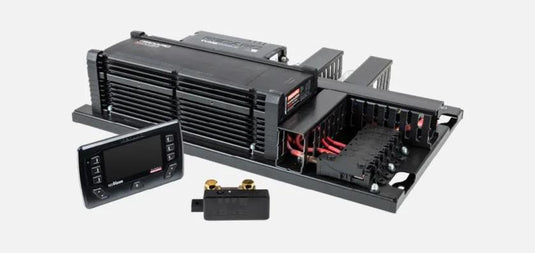

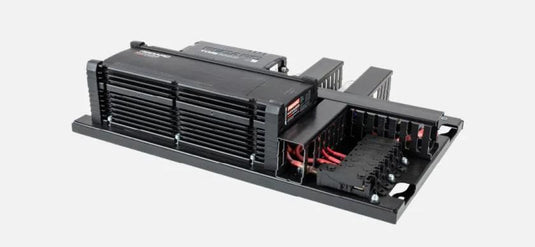

REDARC QuickFit X40 75A Power Panel
The REDARC QuickFit X40 75A Power Panel is a fully integrated, pre-wired power management system designed for caravans, motorhomes, travel trailers and other off-grid recreational vehicles. It combines battery charging, power distribution, accessory control and system monitoring on one compact, installation-ready panel.
Featuring the REDARC Manager Alpha 75A, RedVision Display, Smart Battery Monitor and two TVMS Rogue control modules, the QuickFit X40 provides fast charging and complete control over your recreational vehicle’s electrical system. Each panel is professionally assembled, pre-wired, configured and rigorously tested by REDARC for dependable performance.
Powerful 75A Battery Management
The integrated Manager Alpha 75A can charge compatible auxiliary batteries from the vehicle alternator, solar panels or mains power. This multi-source charging capability helps keep your battery system supplied whether you are driving, camping off-grid or connected to mains electricity.
Start Battery Recovery allows the system to transfer power from the auxiliary battery bank to a discharged tow vehicle or motorhome start battery, helping you get back on the road when the starting battery is flat.
RedVision Control and Monitoring
The included 4.3-inch RedVision Display provides a central control point for lighting, water pumps, awnings, actuators and other compatible accessories. It can also display battery information, charging performance and the levels of up to four compatible water tanks.
Bluetooth connectivity allows compatible system functions to be controlled through the RedVision App. Check battery levels, monitor water tanks and operate accessories from a compatible mobile device.
Features
- Complete pre-wired power management and distribution panel
- REDARC Manager Alpha 75A battery management system
- Charges from alternator, compatible solar panels and mains power
- Start Battery Recovery capability
- RedVision 4.3-inch display
- Bluetooth control through the RedVision App
- Integrated Smart Battery Monitor
- Two TVMS1240 Rogue control modules
- 40 programmable channels
- 20 x 10A switched outputs
- 16 switch inputs for control from multiple locations
- Four tank-level monitoring inputs
- Eight blade-fused outputs for external loads
- Three MIDI-fused outputs for high-power devices
- Automatic low-battery load shedding
- One-touch interior and exterior lighting control
- Configurable lighting dimming and mood-lighting functions
- Compact design helps maximise available caravan space
- Fully assembled, pre-wired and tested by REDARC
- Installation up to 50% faster than assembling separate components
Specifications
- SKU: ICMS-012-75
- Maximum Charger Current: 75A
- Display Size: 4.3 inches
- Programmable Channels: 40
- Switched Outputs: 20 x 10A
- Switch Inputs: 16
- Tank Inputs: 4
- Dimensions: 650mm long x 380mm wide x 145.8mm high
- Weight: 14.9kg
- Warranty: 2 years
Inclusions
- Manager Alpha 75A with RedVision Display
- Smart Battery Monitor
- 2 x TVMS1240 Rogue control modules
- Solar isolator and circuit breaker
- Blue Sea eight-way fuse block for external loads
- Spare MIDI fuses for external loads
- Blue Sea negative bus bar
- Integrated cable-management trunking
- Pre-wired QuickFit mounting panel
