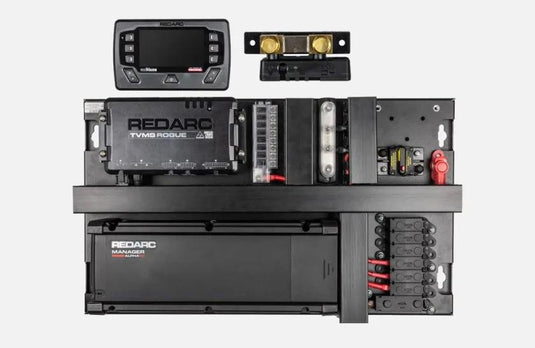

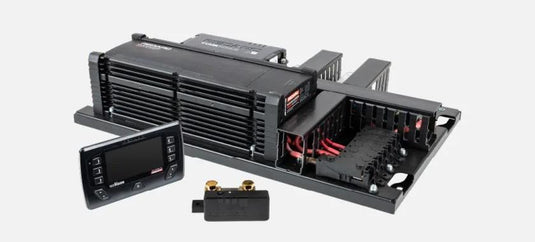

REDARC QuickFit X40 50A Power Panel
The REDARC QuickFit X40 50A Power Panel is a fully integrated, pre-wired power management system designed for caravans, motorhomes, travel trailers and other off-grid recreational vehicles. Combining fast battery charging, power distribution, accessory control and system monitoring on one compact panel, it simplifies installation while providing complete control over your vehicle’s electrical system.
The QuickFit X40 includes a 50A Manager Alpha battery management system, RedVision Display, Smart Battery Monitor and two TVMS Rogue control modules. Each panel is fully assembled, pre-wired, configured and tested by REDARC, helping reduce installation time by up to 50% compared with assembling individual components.
Complete Battery Management
The integrated 50A Manager Alpha can charge your auxiliary batteries from the vehicle alternator, compatible solar panels or mains power. A solar input voltage range of 9–32VDC allows compatible solar panels to help maintain battery power while travelling or camping.
Start Battery Recovery also allows the vehicle or motorhome start battery to be recharged from the auxiliary battery system, helping you get back on the road if the start battery becomes discharged.
RedVision Control and Monitoring
The included 4.3-inch RedVision Display provides centralised control over lighting, water pumps, awnings, actuators and other compatible accessories. Battery levels, charging information and up to four water tank levels can also be monitored from one convenient display.
Bluetooth connectivity allows the system to be controlled through the RedVision App. Check battery levels, monitor water tanks or switch accessories on and off from a compatible mobile device.
Features
- Complete pre-wired power management and distribution panel
- 50A Manager Alpha battery management system
- Charges from alternator, solar and mains power
- Start Battery Recovery capability
- RedVision 4.3-inch display and Bluetooth app control
- Smart Battery Monitor included
- Two TVMS1240 Rogue control modules
- 40 programmable channels
- 20 x 10A switched outputs
- 16 switch inputs for control from multiple locations
- Four tank-level monitoring inputs
- Eight blade-fused outputs for external loads
- Three MIDI-fused outputs for high-power devices
- Automatic low-battery load shedding
- One-touch interior and exterior lighting control
- Configurable lighting dimming and mood-lighting functions
- Integrated cable-management trunking
- Fully assembled, pre-wired and tested
- Installation up to 50% faster than separate components
Specifications
- SKU: ICMS-012-50
- GTIN: 9338628010950
- Maximum Charger Current: 50A
- Solar Input Voltage: 9–32VDC
- Display Size: 4.3 inches
- Programmable Channels: 40
- Switched Outputs: 20 x 10A
- Switch Inputs: 16
- Tank Inputs: 4
- Dimensions: 650mm x 380mm x 145.8mm
- Weight: 14.9kg
- Warranty: 2 years
Inclusions
- Manager Alpha 50A battery management system
- RedVision 4.3-inch display
- Smart Battery Monitor
- 2 x TVMS1240 Rogue control modules
- Solar isolator and circuit breaker
- Blue Sea eight-way fuse block for external loads
- Spare MIDI fuses for external loads
- Blue Sea negative bus bar
- Integrated cable-management trunking
- Pre-wired QuickFit mounting panel
