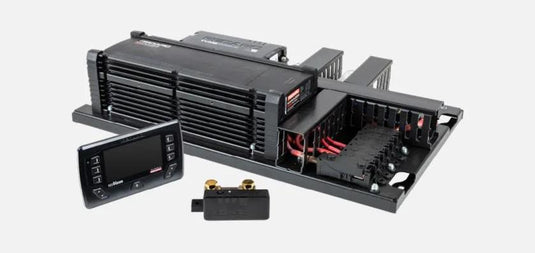

REDARC QuickFit X40 100A Power Panel
The REDARC QuickFit X40 100A Power Panel is a complete, pre-wired power management solution designed for caravans, motorhomes, travel trailers and other modern off-grid recreational vehicles. It combines high-output battery charging, power distribution, accessory control and system monitoring on one compact, installation-ready panel.
Featuring the REDARC Manager Alpha 100A, RedVision Display, Smart Battery Monitor and two TVMS Rogue control modules, the QuickFit X40 provides fast charging and centralised control of your vehicle’s electrical system. Each panel is fully assembled, pre-wired, configured and rigorously tested by REDARC for consistent performance and simplified installation.
High-Output 100A Battery Management
The integrated Manager Alpha 100A can charge compatible auxiliary batteries from the vehicle alternator, solar panels or mains power. This multi-source charging capability helps maintain dependable battery power whether you are travelling, camping off-grid or connected to mains electricity.
Start Battery Recovery allows the QuickFit system to recharge a discharged tow vehicle or motorhome starting battery from the auxiliary battery bank, helping you get back on the road when the start battery is flat.
RedVision Control and Monitoring
The included 4.3-inch RedVision Display provides centralised control of compatible lighting, water pumps, awnings, actuators and other accessories. Battery information, charging performance and the levels of up to four compatible water tanks can also be monitored from one convenient display.
Bluetooth connectivity provides additional control through the RedVision App, allowing you to operate accessories, check battery levels and monitor water tanks from a compatible mobile device.
Features
- Complete pre-wired power management and distribution panel
- REDARC Manager Alpha 100A battery management system
- Charges from the vehicle alternator, solar panels and mains power
- Start Battery Recovery capability
- RedVision 4.3-inch display
- Bluetooth control through the RedVision App
- Integrated Smart Battery Monitor
- Two TVMS1240 Rogue control modules
- 40 programmable channels
- 20 x 10A switched outputs
- 16 switch inputs for multi-location accessory control
- Four tank-level monitoring inputs
- Eight blade-fused outputs for external loads
- Three MIDI-fused outputs for high-power equipment
- Automatic low-battery load shedding
- One-touch interior and exterior lighting control
- Supports automatic entry lighting and actuator control
- Integrated cable-management trunking
- Fully assembled, pre-wired and tested by REDARC
- Installation up to 50% faster than assembling separate components
Specifications
- SKU: ICMS-012-100
- Maximum Charger Current: 100A
- Display Size: 4.3 inches
- Programmable Channels: 40
- Switched Outputs: 20 x 10A
- Switch Inputs: 16
- Tank Inputs: 4
- Dimensions: 650mm long x 380mm wide x 145.8mm high
- Weight: 14.9kg
- Warranty: 2 years
Inclusions
- Manager Alpha 100A with RedVision Display
- Smart Battery Monitor
- 2 x TVMS1240 Rogue control modules
- Solar isolator and circuit breaker
- Blue Sea eight-way fuse block for external loads
- Spare MIDI fuses for external loads
- Blue Sea negative bus bar
- Integrated cable-management trunking
- Pre-wired QuickFit mounting panel
