REDARC Kit Brake Wiring Harness Tow-Pro - Suit Ford/Lincoln

Vendor Redarc

SKU: TPH-005

Regular price $45.21
Sale price $45.21 Regular price
Sale Sold out
Unit price
/per
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

REDARC Ford/Lincoln Suitable Tow-Pro Brake Controller Harness (TPH-005) - TPH-005

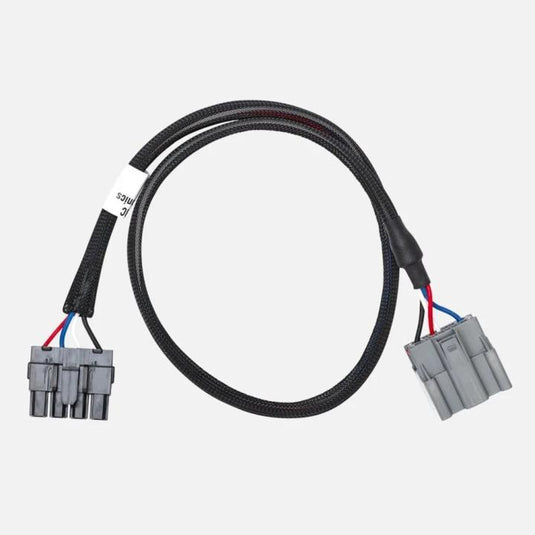

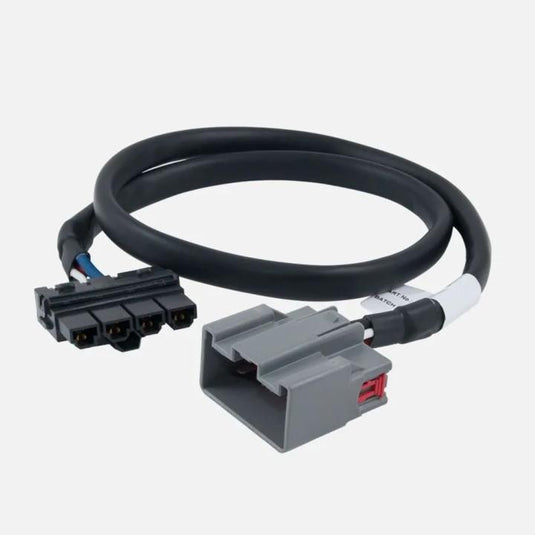

REDARC Ford/Lincoln Suitable Tow-Pro Brake Controller Harness (TPH-005) - TPH-005. A US vehicle specific wiring harness to connect REDARC's Tow-Pro Elite or Tow-Pro Classic electric brake controller into a Ford or Lincoln vehicles factory towing package connector behind your vehicle dash. Includes fitting instructions and loom with compatible connector. Mating harness adaptors are also available allowing the user to install the Tow-Pro™ using other manufacturers existing custom wiring installations. Plug one end of the harness to the electric brake controller connector and then plug the other end to the factory fitted connector behind the vehicle dash. These harnesses will also connect to the Tow-Pro Classic with a small modification. The Tow-Pro Classic does not have a mating connector and requires bare wires to be inserted into the brake controller instead.



Note: Most older Australian model vehicles do not have this plug/connector from factory. Some late/current model vehicles may have a dedicated electric brake harness connector to suit but is yet to be validated by REDARC. For Australian model suitability, please consult with your local OEM Dealership.



Specifications:

  • Suits the following Ford and Lincoln models:
    • FORD - E-150 Econoline (2009-2014), Location code: G.
    • FORD - E-250 Econoline (2009-2014), Location code: G.
    • FORD - E-350 Super Duty RV Cutaway, w/Factory Tow Prep Plug (2009-2011), Location code: G.
    • FORD - E-350 Econoline Super Duty (2009-2014), Location code: G.
    • FORD - E-450 Super Duty RV Cutaway, w/Factory Tow Prep Plug (2009-2011), Location code: G
    • FORD - E-Series Cutaway (2015-2017), Location code: G.
    • FORD - Expedition (2013-2014), Location code: D.
    • FORD - F-250 Super Duty (2008-2016), Location code: B.
    • FORD - F-350 Super Duty Cab & Chassis (2008-2016), Location code: B.
    • FORD - F-350 Super Duty (2008-2016), Location code: B.
    • FORD - F-450 Super Duty Cab & Chassis (2008-2016), Location code: B.
    • FORD - F-450 Super Duty (2008-2016), Location code: B.
    • FORD - F-550 Super Duty Cab & Chassis (2008-2016), Location code: B.
    • FORD - Transit Van (2009-2017), Location code: G/D.
    • LINCOLN - Navigator (2013-2014), Location code: B.
  • Connect and control options: 1.
  • Battery functionality: 1.
  • Solar regulator type: 1.
  • Connection type: 1.
  • IP RATING: 1.
  • Total output current: 1.
  • Watt: 1200W.
  • Kit type: 1.
  • Fuse type: Mega.
  • Cable length (mm): 812.8.
  • Weight (g): 95.
  • 2 year warranty.
Free Delivery for orders over $99
Description

REDARC Ford/Lincoln Suitable Tow-Pro Brake Controller Harness (TPH-005) - TPH-005

REDARC Ford/Lincoln Suitable Tow-Pro Brake Controller Harness (TPH-005) - TPH-005. A US vehicle specific wiring harness to connect REDARC's Tow-Pro Elite or Tow-Pro Classic electric brake controller into a Ford or Lincoln vehicles factory towing package connector behind your vehicle dash. Includes fitting instructions and loom with compatible connector. Mating harness adaptors are also available allowing the user to install the Tow-Pro™ using other manufacturers existing custom wiring installations. Plug one end of the harness to the electric brake controller connector and then plug the other end to the factory fitted connector behind the vehicle dash. These harnesses will also connect to the Tow-Pro Classic with a small modification. The Tow-Pro Classic does not have a mating connector and requires bare wires to be inserted into the brake controller instead.



Note: Most older Australian model vehicles do not have this plug/connector from factory. Some late/current model vehicles may have a dedicated electric brake harness connector to suit but is yet to be validated by REDARC. For Australian model suitability, please consult with your local OEM Dealership.



Specifications:

  • Suits the following Ford and Lincoln models:
    • FORD - E-150 Econoline (2009-2014), Location code: G.
    • FORD - E-250 Econoline (2009-2014), Location code: G.
    • FORD - E-350 Super Duty RV Cutaway, w/Factory Tow Prep Plug (2009-2011), Location code: G.
    • FORD - E-350 Econoline Super Duty (2009-2014), Location code: G.
    • FORD - E-450 Super Duty RV Cutaway, w/Factory Tow Prep Plug (2009-2011), Location code: G
    • FORD - E-Series Cutaway (2015-2017), Location code: G.
    • FORD - Expedition (2013-2014), Location code: D.
    • FORD - F-250 Super Duty (2008-2016), Location code: B.
    • FORD - F-350 Super Duty Cab & Chassis (2008-2016), Location code: B.
    • FORD - F-350 Super Duty (2008-2016), Location code: B.
    • FORD - F-450 Super Duty Cab & Chassis (2008-2016), Location code: B.
    • FORD - F-450 Super Duty (2008-2016), Location code: B.
    • FORD - F-550 Super Duty Cab & Chassis (2008-2016), Location code: B.
    • FORD - Transit Van (2009-2017), Location code: G/D.
    • LINCOLN - Navigator (2013-2014), Location code: B.
  • Connect and control options: 1.
  • Battery functionality: 1.
  • Solar regulator type: 1.
  • Connection type: 1.
  • IP RATING: 1.
  • Total output current: 1.
  • Watt: 1200W.
  • Kit type: 1.
  • Fuse type: Mega.
  • Cable length (mm): 812.8.
  • Weight (g): 95.
  • 2 year warranty.
