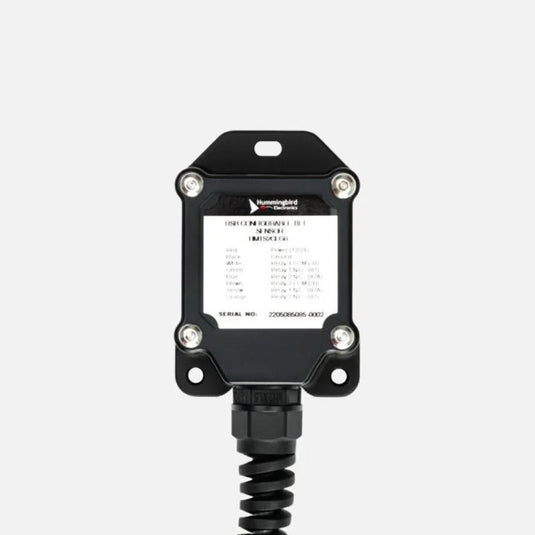

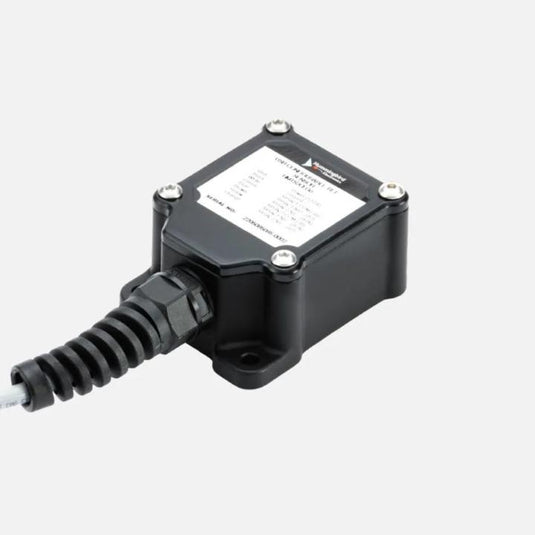

REDARC Hummingbird USB Configurable Tilt-Switch

Redarc

SKU: HMTS2CFG0

$752.40
$752.40
Sale Sold out
/
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

REDARC Hummingbird USB Configurable Tilt-Switch - HMTS2CFG0

REDARC Hummingbird USB Configurable Tilt-Switch - HMTS2CFG0. A USB Configurable Tilt-Switch with voltage outputs. Typically used in automation systems where voltage output is required. Users can set parameters required for optimum performance associated with the tilt-switches and can view their performance in real-time. Dual axis sensing is supported and two configurable alarms are available. Configurable tilt-switches measure pitch and roll angles with high accuracy by measuring the earth's gravitational field. Two internal voltage free relays can be programmed to close or open at various combinations of the measured pitch and roll. For maximum flexibility, normally open, normally closed and common outputs are available. An integrated USB interface means that the sensor can be configured in-application using a laptop. The configuration software also facilitates real-time monitoring of the pitch, roll and relay status. A scrolling graph allows the user to evaluate sensor response and noise in the application.



Note:  The integrated relay outputs are not internally fused. Driving currents larger than those specified will result in damage to the tilt-switch.



Features:

  • Accurate to 0.1 degrees for up to 30 degrees of tilt in any axis.
  • The USB interface allows the following configuration:
    • Set alarm conditions as a combination of pitch and roll.
    • Set hysteresis on each alarm output to avoid erratic switching at the setpoint.
    • Zero the sensor to eradicate small offsets due to mounting.
    • Apply variable damping to avoid false readings in mechanically noisy, environments.
  • Manual calibration can be performed.
  • 2 voltage outputs.
  • USB configurable angle and voltage outputs.
  • Multi-voltage range from 9-36V.
  • Reverse polarity protected.
  • Separate outputs for pitch & roll.
  • Rugged aluminium enclosure.
  • Input voltage: Min. 9V; Max. 36V.
  • Dimensions:
    • Height (mm): 35
    • Width (mm): 57
    • Depth/Length (mm): 82
    • Weight (kg): 0.25
  • 2 year warranty.
Description

REDARC Hummingbird USB Configurable Tilt-Switch - HMTS2CFG0

REDARC Hummingbird USB Configurable Tilt-Switch - HMTS2CFG0. A USB Configurable Tilt-Switch with voltage outputs. Typically used in automation systems where voltage output is required. Users can set parameters required for optimum performance associated with the tilt-switches and can view their performance in real-time. Dual axis sensing is supported and two configurable alarms are available. Configurable tilt-switches measure pitch and roll angles with high accuracy by measuring the earth's gravitational field. Two internal voltage free relays can be programmed to close or open at various combinations of the measured pitch and roll. For maximum flexibility, normally open, normally closed and common outputs are available. An integrated USB interface means that the sensor can be configured in-application using a laptop. The configuration software also facilitates real-time monitoring of the pitch, roll and relay status. A scrolling graph allows the user to evaluate sensor response and noise in the application.



Note:  The integrated relay outputs are not internally fused. Driving currents larger than those specified will result in damage to the tilt-switch.



Features:

  • Accurate to 0.1 degrees for up to 30 degrees of tilt in any axis.
  • The USB interface allows the following configuration:
    • Set alarm conditions as a combination of pitch and roll.
    • Set hysteresis on each alarm output to avoid erratic switching at the setpoint.
    • Zero the sensor to eradicate small offsets due to mounting.
    • Apply variable damping to avoid false readings in mechanically noisy, environments.
  • Manual calibration can be performed.
  • 2 voltage outputs.
  • USB configurable angle and voltage outputs.
  • Multi-voltage range from 9-36V.
  • Reverse polarity protected.
  • Separate outputs for pitch & roll.
  • Rugged aluminium enclosure.
  • Input voltage: Min. 9V; Max. 36V.
  • Dimensions:
    • Height (mm): 35
    • Width (mm): 57
    • Depth/Length (mm): 82
    • Weight (kg): 0.25
  • 2 year warranty.
