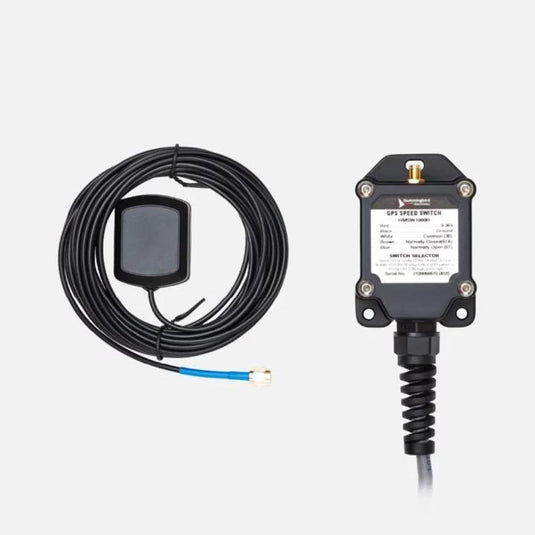

REDARC Hummingbird GPS Speed Switch incl. Magnetic Antenna

Vendor Redarc

SKU: HMSW1000BM

Regular price $515.60
Sale price $515.60 Regular price
Sale Sold out
Unit price
/per
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

REDARC Hummingbird GPS Speed Switch incl. Magnetic Antenna - HMSW1000BM

REDARC Hummingbird GPS Speed Switch incl. Magnetic Antenna - HMSW1000BM. A speed switch that provides a calibration free speed based switch and easy to install. Eliminating the dependency on vehicle specific parameters and periodic calibration, by using Global Positioning Satellite network, the GPS Speed Switch calculates three-dimensional ground speed. If the speed exceeds the threshold, relay contacts switch, providing the installer with maximum versatility. Speed thresholds are set using internal switches in either km/h or mi/h. Speed switch integrates the source of the speed signal with the switch resulting in a small, reliable solution. A 50 channel satellite receiver, enhanced receiver sensitivity and active antenna result in fast time-to-first-velocity-calculation as well as the ability to operate in the harshest RF environments such as canyons and cities. Last known position and satellite information critical to fast start-up are battery backed in case of power failure. A voltage free relay output with common (30), normally-open (87) and normally-closed (87A) terminals is provided. At low speed, the common contact is connected to the normally closed contact and when the speed set point is exceeded, the common terminal will be switched over to the normally open contact. The module features transient voltage protection on the supply and short circuit protected outputs.



Features:

  • Easy to install.
  • Supplied in a rugged aluminium enclosure with provision for screw mounting when required. Antenna connection for the active antenna is provided through a gold-plated threaded SMA connector.
  • Three-dimensional velocity calculations are accurate to 0.2km/h and speed readings are updated 10 times per second.
  • Ideally suited to providing a warning or taking action when a vehicle exceeds a given speed.
  • No connection to vehicle electrics.
  • Voltage free relay output.
  • Adjustable speed limit.
  • km/h or mph.
  • External GPS & GLONASS antenna.
  • Multi voltage 12/24V.
  • Installer settable speed threshold.
  • Input voltage: Min. 9V; Max. 36V.
  • Dimensions:
    • Height (mm): 35
    • Width (mm): 57
    • Depth/Length (mm): 82
    • Weight (kg): 0.25
  • 2 year warranty.
Free Delivery for orders over $99
Description

REDARC Hummingbird GPS Speed Switch incl. Magnetic Antenna - HMSW1000BM

REDARC Hummingbird GPS Speed Switch incl. Magnetic Antenna - HMSW1000BM. A speed switch that provides a calibration free speed based switch and easy to install. Eliminating the dependency on vehicle specific parameters and periodic calibration, by using Global Positioning Satellite network, the GPS Speed Switch calculates three-dimensional ground speed. If the speed exceeds the threshold, relay contacts switch, providing the installer with maximum versatility. Speed thresholds are set using internal switches in either km/h or mi/h. Speed switch integrates the source of the speed signal with the switch resulting in a small, reliable solution. A 50 channel satellite receiver, enhanced receiver sensitivity and active antenna result in fast time-to-first-velocity-calculation as well as the ability to operate in the harshest RF environments such as canyons and cities. Last known position and satellite information critical to fast start-up are battery backed in case of power failure. A voltage free relay output with common (30), normally-open (87) and normally-closed (87A) terminals is provided. At low speed, the common contact is connected to the normally closed contact and when the speed set point is exceeded, the common terminal will be switched over to the normally open contact. The module features transient voltage protection on the supply and short circuit protected outputs.



Features:

  • Easy to install.
  • Supplied in a rugged aluminium enclosure with provision for screw mounting when required. Antenna connection for the active antenna is provided through a gold-plated threaded SMA connector.
  • Three-dimensional velocity calculations are accurate to 0.2km/h and speed readings are updated 10 times per second.
  • Ideally suited to providing a warning or taking action when a vehicle exceeds a given speed.
  • No connection to vehicle electrics.
  • Voltage free relay output.
  • Adjustable speed limit.
  • km/h or mph.
  • External GPS & GLONASS antenna.
  • Multi voltage 12/24V.
  • Installer settable speed threshold.
  • Input voltage: Min. 9V; Max. 36V.
  • Dimensions:
    • Height (mm): 35
    • Width (mm): 57
    • Depth/Length (mm): 82
    • Weight (kg): 0.25
  • 2 year warranty.
