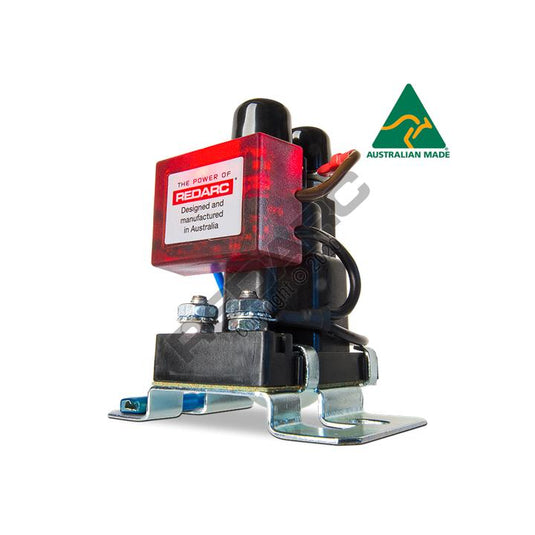

REDARC Dual Sensing Smart Start Battery Isolator 24V 100A - SBI24D

REDARC Smart Start SBI 24V 100A - SBI24. A microprocessor controlled dual battery isolator used to isolate the start and auxiliary batteries in a dual battery system. It will protect the start battery from a low charge in the secondary battery so it won’t drain the primary battery. The SBI24D provides 24 volt DC incorporating 100A of continuous ratings. It's dual sensing model is used to isolate the start and auxiliary batteries in a system where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger. The SBI24D also allows the start battery to be topped up and charged from the auxiliary battery when the auxiliary battery is being charged by an external source once it reaches 26.4 volts. Incorporates electronic components preventing the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions. For installation, a quality fuse kit is recommended.

Features:

• Overmould design.
• Compact in size and easy to install.
• Silver contacts for longer life and suitable for marine applications.
• Power saving technology.
• Fault indication.
• Fully surge protected.
• 2 year warranty.

Specifications:

• Max. Inrush current: 400A.
• Max. Continuous current: 100A.
• Turn on voltage: 26.4V.
• Turn off voltage: 25.4V.
• Turn on delay: 5 seconds.
• Turn off delay: 10 seconds.
• Standby current: <5mA.
• System voltage: 24V.
• Output voltage: 24V DC.
• Input fuse rating: 100A.
• Output fuse rating: 100A.

Dimensions:

• Height (mm): 70
• Width (mm): 75
• Depth/Length (mm): 80
• Weight (g): 200
