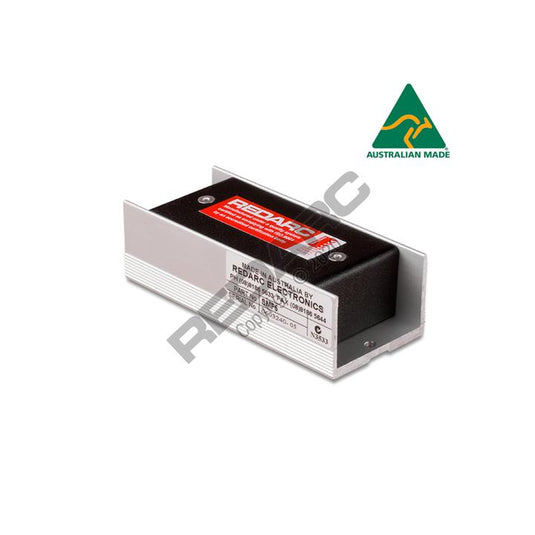

The compact SMF series supplies 13.6V (+/-5%) from a 24V negative ground automotive electrical system. It is suitable for lamps, small motors and electronic loads to a maximum of 2, 5 or 8 AMPS continuous rating depending on the unit. In addition to the ignition switched output, there is also a constant output which may be used (e.g. for radio memory.)
Features
- Compact in size and easy to install
- In built current limiting
- Memory wire
- Wide input voltage range
Specifications
Input (Operating) Voltage | 15 - 33VDC |
Output System Voltage | 13.6VDC |
Output Current Rating (Cont.) | 5A |
Input Fuse Rating | 5A |
Warranty | 2 Years |
Standby Current Draw | 25mA |
Length (mm) | 100 |
Width (mm) | 45 |
Height (mm) | 30 |
Weight (kg) | 0.21 |
