REDARC 50A REDWorks to Start Battery Wiring Kit 8m
The REDARC 50A REDWorks to Start Battery Wiring Kit 8m provides the components required to connect a compatible REDWorks power panel to your vehicle’s start battery. Designed to simplify installation, the kit includes pre-crimped battery cables, an Anderson connector, ignition wiring and essential circuit protection.
With an 8-metre Anderson-to-battery terminal cable, the BATWK-001 is ideal for installations where the REDWorks power panel is positioned further away from the vehicle’s start battery, including installations in the rear of a 4WD, canopy, service body or touring vehicle.
Simple REDWorks Power Panel Connection
The pre-crimped Anderson cable provides a quick and reliable connection to the vehicle power input on a compatible REDWorks panel. M8 battery terminals connect to the vehicle battery, while the included 70A MIDI fuse and holder provide protection for the main power circuit.
An ignition cable is also supplied for vehicles fitted with a smart alternator. Vehicles with a standard alternator generally do not require the ignition connection.
Features
- Designed for compatible REDWorks power panels
- Connects the power panel to the vehicle start battery
- 8-metre Anderson-to-M8 battery terminal cable
- Pre-crimped cables for a faster, simpler installation
- Anderson connector for easy power panel connection
- Includes ignition wiring for smart alternator vehicles
- 70A MIDI fuse and holder for main circuit protection
- 2A blade fuse for the ignition circuit
- Supplied with cable ties for secure cable management
- Suitable for 50A REDWorks power panel installations
Specifications
- Product: 50A REDWorks to Start Battery Wiring Kit
- SKU: BATWK-001
- GTIN: 9338628011650
- Main Cable Length: 8m
- Blue Ignition Cable Length: 9m
- Red/Blue Ignition Cable Length: 300mm
- Short Red Cable Length: 150mm
- Main Fuse: 70A MIDI fuse
- Ignition Fuse: 2A blade fuse
- Cable Ties: 15
- Warranty: 2 years

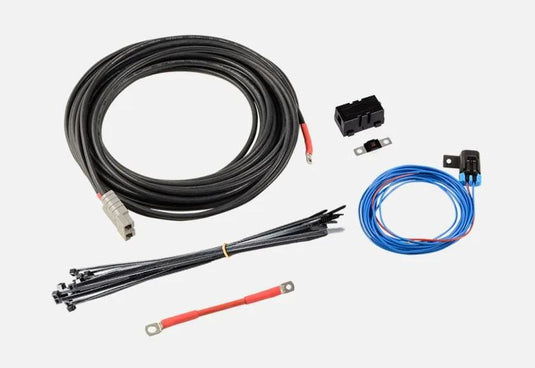

Inclusions
- 8m Anderson-to-M8 battery terminal cable
- 9m blue ignition cable
- 300mm red and blue ignition cable
- 2A blade fuse
- 70A MIDI fuse with fuse holder
- 150mm short red battery cable
- 15 cable ties
Installation Note: Install the fuse holder as close as practical to the positive terminal of the vehicle start battery. Wiring must be secured and kept away from hot surfaces, sharp edges and moving components. REDARC recommends installation by a suitably qualified person.
