The REDARC 50A REDWorks to Start Battery Wiring Kit provides the essential components required to connect a REDWorks power panel to your vehicle’s start battery. Designed to simplify installation, the kit includes pre-crimped battery cables, an Anderson connector, ignition wiring, circuit protection and cable ties.
With a 5-metre Anderson-to-battery cable, the BATWK-002 is ideal for installations where the REDWorks power panel is positioned within five metres of the vehicle start battery. The pre-assembled connections help reduce installation time while providing a reliable power connection for your vehicle’s auxiliary battery charging system.
Simple REDWorks Power Panel Installation
The Anderson connector plugs directly into the compatible vehicle power input on your REDWorks power panel. M8 battery terminals provide a secure connection at the start battery, while the supplied 70A MIDI fuse and holder protect the main power circuit.
An ignition cable is also included for vehicles fitted with a smart alternator. Vehicles with a standard alternator generally do not require the ignition cable connection.
Features
- Designed to connect a REDWorks power panel to the vehicle start battery
- 5-metre Anderson-to-M8 battery terminal cable
- Pre-crimped cables for faster installation
- Anderson connector for simple power panel connection
- Includes smart alternator ignition wiring
- 70A MIDI fuse and fuse holder for circuit protection
- 2A blade fuse for the ignition circuit
- Supplied with cable ties for secure cable routing
- Suitable for 50A REDWorks power panel installations
Specifications
- Product: 50A REDWorks to Start Battery Wiring Kit
- SKU: BATWK-002
- GTIN: 9338628011667
- Main Cable Length: 5m
- Blue Ignition Cable Length: 6.5m
- Red/Blue Ignition Cable Length: 300mm
- Short Red Cable Length: 150mm
- Main Fuse: 70A MIDI fuse
- Ignition Fuse: 2A blade fuse
- Cable Ties: 15
- Warranty: 2 years

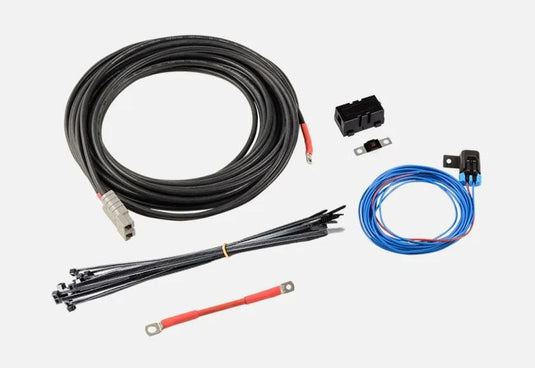

Inclusions
- 5m Anderson-to-M8 battery terminal cable
- 6.5m blue ignition cable
- 300mm red and blue ignition cable
- 2A blade fuse
- 70A MIDI fuse and fuse holder
- 150mm short red battery cable
- 15 cable ties
Installation Note: The fuse holder should be installed as close as practical to the positive terminal of the vehicle start battery. Cables must be kept away from sharp edges, hot surfaces and moving components. REDARC recommends installation by a suitably qualified person.
Frequently Asked Questions
What is the BATWK-002 wiring kit used for?
It is designed to provide the main power and ignition connections between a vehicle start battery and a compatible REDWorks power panel.
How long is the main battery cable?
The Anderson-to-M8 battery terminal cable is 5 metres long. An 8-metre version is available separately under part number BATWK-001.
Is the ignition cable always required?
No. The ignition connection is generally required for vehicles fitted with a smart alternator. Vehicles with a standard alternator typically do not require it.
Does the kit include circuit protection?
Yes. The kit includes a 70A MIDI fuse and holder for the main power cable, plus a 2A blade fuse for the ignition circuit.
