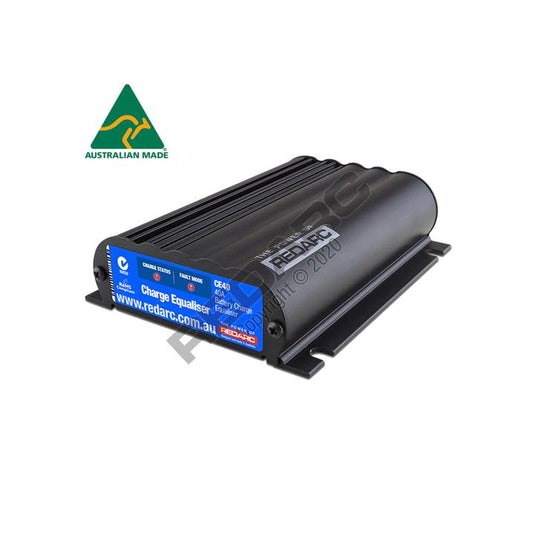

REDARC 40A Charge Equalizer - CE40S2
REDARC 40A Charge Equalizer - CE40S2. A 40A Charge Equaliser allows 12 volts to be ‘tapped’ from the centre of a series-connected, two battery, 24 volt DC electrical system while still ensuring an equal charge across the two batteries. Ideal when space/cost prohibits installation of a separate 12 volt battery. Provides improved functionality with reduced installation complexity and features input isolation, negating the need for an input relay or isolator. A high peak current capability and fast transient response suited for loads requiring a safe, clean and stable 12 volt supply. Has the advantage of drawing power from a battery rather than through a current limited device, such as a voltage reducer. This allows for a much larger peak current draw.
Features:
- Designed to keep your 24 volt batteries equally charged.
- Reduce down time and running costs by extending battery life.
- Peak load currents are limited only by the battery.
- Designed for Australia's harsh conditions.
- Based on the award winning BCDC platform.
- High peak current capability.
- Fast transient response.
- Sealed and suited for commercial applications.
- 2 year warranty.
Specifications:
- Continuous rating: 40A.
- No load current: <100mA.
- Standby current: <10mA.
- Operating temperature: -20°C to 80°C.
- Input voltage: 20 - 32V.
- Output voltage: 6 - 16V.
- Max. rated output current: 40A.
- Input fuse rating: 50A (Not supplied).
- Output fuse rating: 50A (Not supplied).
Dimensions:
- Height (mm): 37
- Width (mm): 120
- Depth/Length (mm): 150
- Weight (g): 680
