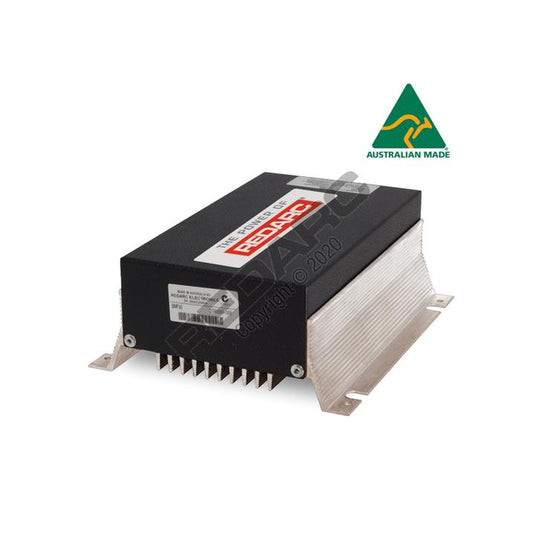

The compact SMF series supplies 13.7V (+/-5%) from a 24V negative ground automotive electrical system. It is suitable for lamps, small motors, computer and communications equipment, fridges, pumps, TV’s and electronic loads to a maximum of 10, 20, 30, 40 or 60 AMPS continuous rating depending on the unit. The reducers are ideally suited to applications that require a low noise output and are designed to operate sensitive radio and communication equipment.
Features
- Compact in size and easy to install
- In built current limiting
- Memory wire
- Wide input voltage range
Specifications
| Input (Operating) Voltage | 16 - 33VDC |
| Output System Voltage | 13.7V |
| Output Current Rating (Cont.) | 30A |
| Input Fuse Rating | 20A |
| Warranty | 2 Years |
| Standby Current Draw | 15mA |
| Length (mm) | 160 |
| Width (mm) | 135 |
| Height (mm) | 60 |
| Weight (kg) | 1.1 |
