REDARC Prime RedVision System - TVMSKIT05
REDARC Prime RedVision System - TVMSKIT05. A RedVision System to suit setups with more than two water tanks and a mix of low and high-powered devices. Ideal for camper trailers and mid-sized caravans. 6 tank sensor inputs, a dedicated inverter channel and 80A max current make the Prime RedVision System an absolute powerhouse. The Prime RedVision System includes the main components you need to power your next build. Just add batteries, cables, and fuses. Whether you're free camping or on a powered site to keep secondary batteries charged while you travel, from solar, or from a power point at home. Includes a Manager30 battery manager, to keep track of your essentials in real time. State of charge, charge remaining, charge/discharge current and battery temps are all available on the included RedVision display or connected phone app. Six dedicated tank level sensor inputs and two ambient temperature inputs make the Prime RedVision System the all-seeing eye of your power set up. Allows complete control of multiple on-board devices including lights, fans, fridges, inverters, and pumps. Its 10 output channels include 5x 30A and 5x 10A channels, perfect for controlling a mix of low and high-powered devices. With a max current of 80A, you’ll never be limited to how many devices you can run at once. A dedicated inverter channel brings the total number of channels to 11. Take control outside with the connected Bluetooth app or use the included RedVision display. Easily automate tedious tasks with a press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.
Note: The RedVision system (TVMS1280) and RedVision/Manager30 Kits (TVMSKIT05) are compliant to Australian and New Zealand regulations only. As a result, availability of the RedVision mobile applications outside of these regions are restricted accordingly.
Features:
- 5x 30A outputs.
- 5x 10A outputs.
- 80A maximum current.
- 6x tank sensor inputs.
- 2x temp sensor inputs.
- 1x voltage sensor input.
- 1x dedicated inverter output.
- Easy accessible fuses.
- Fully programmable.
- Multi-Stage AC-DC Battery Charger.
- Multi-Stage DC to DC Charger.
- Maximum Power Point Tracking Solar Regulator.
- Dual Battery Isolator.
- Load Disconnect Controller.
- Quiet operation.
- Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries.
- Tested to mains power safety standards in Australia.
- Made in Australia.
- 2 year warranty.
Specifications:
- Solar input voltage: 9 - 30V.
- System voltage: 12V.

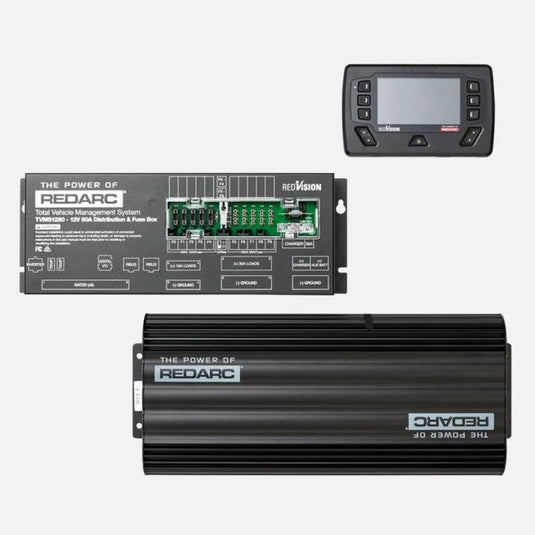

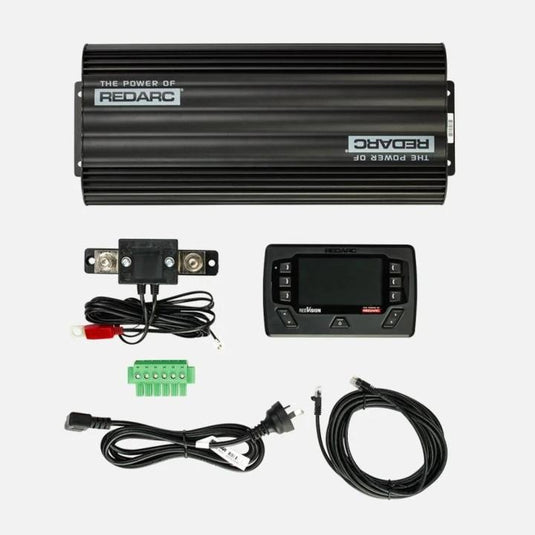

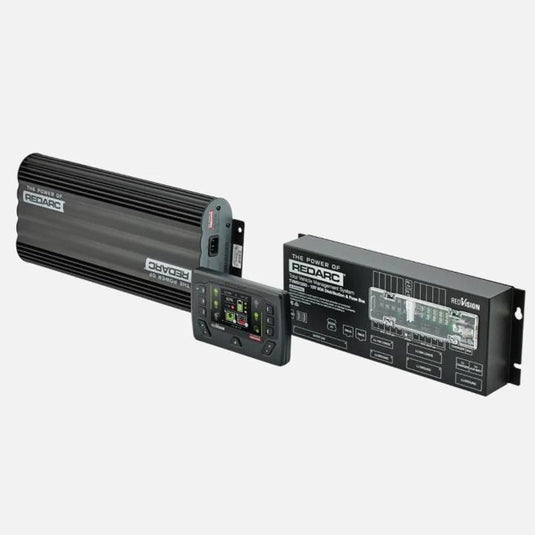

- Included in the kit:
- TVMS Prime RedVision control module.
- Manager30 Battery management system.

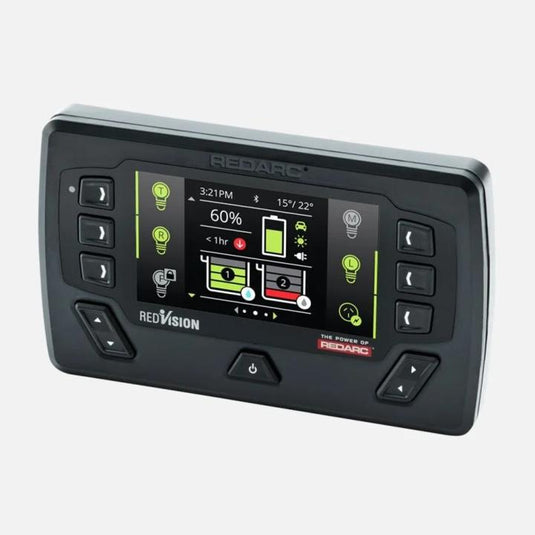

- RedVision display.
