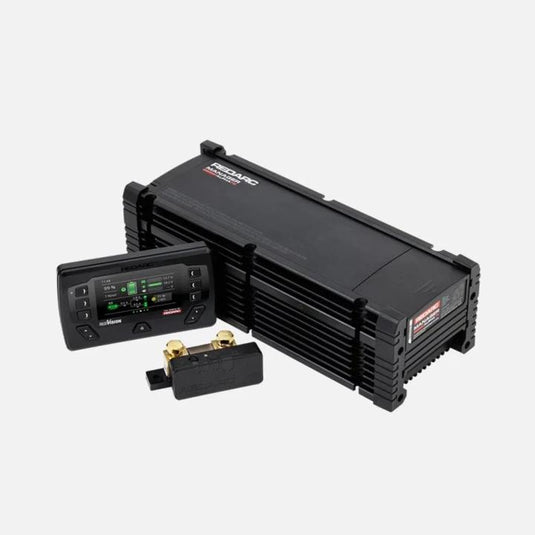

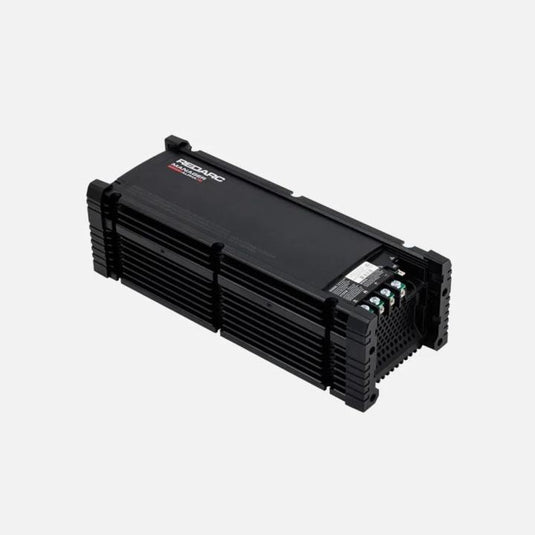

REDARC 12V 75A Manager Alpha Battery Management

Vendor Redarc

SKU: BMS12075-AU

Regular price $4,899.01
Sale price $4,899.01 Regular price
Sale Sold out
Unit price
/per
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

REDARC Manager Alpha75 with RedVision - BMS12075-AU

REDARC Manager Alpha75 with RedVision - BMS12075-AU. A battery management system harging auxiliary batteries used in recreational vehicles, caravans and camper trailers. Get the much needed charge of secondary batteries with a combination of DC, AC and solar charging, no matter the type of journey taken. Delivering 75A of charge from a combination of available power sources, can run anything from induction cooktops to fridges and air conditioners while charging faster than you can drain them. Smaller and lightweight to accommodate more space for your gear.



Features:

  • Tested against toughest vibrations standards, built and tested to withstand the Australian outback.
  • Simultaneous 75A charging from DC, AC and solar power.
  • Start Battery Charge and Recovery modes, the Manager Alpha75 is able to use excess solar power to keep your start battery charged or bring it back to life in the event of a flat battery.

  • Smart Battery Monitor allows you to stay connected with the latest Bluetooth 5.1 technology delivers reliability over distances up to 42m.
  • RedVision compatibility: RedVision to monitor state of charge, remaining charge and current flow of information.
  • Up to 55% smaller and 20% lighter than comparable systems.
  • Start battery back charge capability.
  • 2 year warranty.



Specifications:

  • Nominal voltage: 12V.
  • Current measurement range: ± 500A.
  • Start battery input voltage range: 9-32VDC.
  • Solar input voltage range: 9-32VDC.
  • Nominal output voltage: 12V.
  • Compatible battery types: Gel, AGM, Calcium, Standard Lead Acid, Lithium.
  • Nominal current rating: 75A.
  • AC input voltage range: 95 – 264 VAC rms / 45 – 65 Hz.
  • Operating temperature: –20°C to 60°C.



Dimensions:

  • Height (mm): 120
  • Width (mm): 154
  • Depth/Length (mm): 400
  • Weight (kg): 6.0
Free Delivery for orders over $99
Description

REDARC Manager Alpha75 with RedVision - BMS12075-AU

REDARC Manager Alpha75 with RedVision - BMS12075-AU. A battery management system harging auxiliary batteries used in recreational vehicles, caravans and camper trailers. Get the much needed charge of secondary batteries with a combination of DC, AC and solar charging, no matter the type of journey taken. Delivering 75A of charge from a combination of available power sources, can run anything from induction cooktops to fridges and air conditioners while charging faster than you can drain them. Smaller and lightweight to accommodate more space for your gear.



Features:

  • Tested against toughest vibrations standards, built and tested to withstand the Australian outback.
  • Simultaneous 75A charging from DC, AC and solar power.
  • Start Battery Charge and Recovery modes, the Manager Alpha75 is able to use excess solar power to keep your start battery charged or bring it back to life in the event of a flat battery.

  • Smart Battery Monitor allows you to stay connected with the latest Bluetooth 5.1 technology delivers reliability over distances up to 42m.
  • RedVision compatibility: RedVision to monitor state of charge, remaining charge and current flow of information.
  • Up to 55% smaller and 20% lighter than comparable systems.
  • Start battery back charge capability.
  • 2 year warranty.



Specifications:

  • Nominal voltage: 12V.
  • Current measurement range: ± 500A.
  • Start battery input voltage range: 9-32VDC.
  • Solar input voltage range: 9-32VDC.
  • Nominal output voltage: 12V.
  • Compatible battery types: Gel, AGM, Calcium, Standard Lead Acid, Lithium.
  • Nominal current rating: 75A.
  • AC input voltage range: 95 – 264 VAC rms / 45 – 65 Hz.
  • Operating temperature: –20°C to 60°C.



Dimensions:

  • Height (mm): 120
  • Width (mm): 154
  • Depth/Length (mm): 400
  • Weight (kg): 6.0
