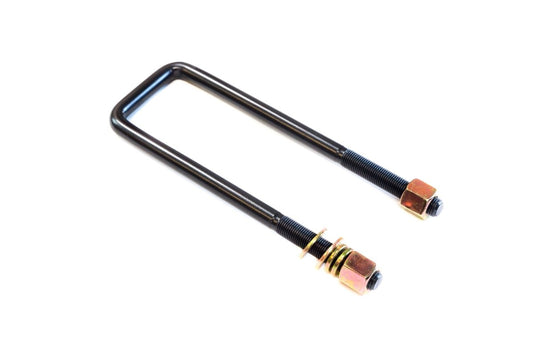

Outback Armour Leaf Spring U-Bolt - OASU2362005

SKU: OASU2362005

Regular price $15.00
Sale price $15.00 Regular price $15.00
Sale Sold out
Unit price
/per
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

Outback Armour Leaf Spring U-Bolt OASU2362005

Choose Outback Armour OASU2362005 leaf spring u-bolt for the vehicle applications below. Match the thread, internal width and length to the axle and leaf spring pack.

Specifications

  • Part number: OASU2362005
  • Product: UBolt - M14 x 62 ID x 230 L
  • Supply unit: each
  • Quantity required per vehicle: 4
  • Hardened steel, forge rolled threads.
  • Material: Hardened steel
  • Thread: Rolled threads (M14 x 1.5)
  • Shape: Square
  • Size: 230 x 62mm
  • Steel: 40Cr, hardened (10.9)
  • Paint / Finish: Black paint

Inclusions

  • 1 leaf spring u-bolt

Vehicle Fitment

Ford Ranger: PY (2022+) 4cyl Diesel; PY (2022+) 4cyl Diesel GVM Upgrade (3,600kg); PY (2022+) 4cyl Diesel GVM Upgrade (3,800kg); PY (2022+) V6 Diesel; PY (2022+) V6 Diesel GVM Upgrade (3,600kg); PY (2022+) V6 Diesel GVM Upgrade (3,800kg)

Mitsubishi Triton: MV (2024+)

Nissan Navara: D27 2026+

Toyota Hilux: 150 Series (N70) 2005 - 2015; AN2 (N90) 2026+; Gen 8 (N80) 2015 - 11/2025; Gen 8 (N80) 2015 - 11/2025 GVM Upgrade (3,550kg); Gen 8 (N80) 2015 - 11/2025 GVM Upgrade (3,750kg)

Volkswagen Amarok: NF (2023+) 4cyl; NF (2023+) 4cyl GVM Upgrade (3,600kg); NF (2023+) 4cyl GVM Upgrade (3,800kg); NF (2023+) V6 Diesel; NF (2023+) V6 Diesel GVM Upgrade (3,600kg); NF (2023+) V6 Diesel GVM Upgrade (3,800kg)

FAQ

Will it fit my vehicle? Check the model, series, year and any application notes above, including required companion parts.

Description

Outback Armour Leaf Spring U-Bolt OASU2362005

Choose Outback Armour OASU2362005 leaf spring u-bolt for the vehicle applications below. Match the thread, internal width and length to the axle and leaf spring pack.

Specifications

  • Part number: OASU2362005
  • Product: UBolt - M14 x 62 ID x 230 L
  • Supply unit: each
  • Quantity required per vehicle: 4
  • Hardened steel, forge rolled threads.
  • Material: Hardened steel
  • Thread: Rolled threads (M14 x 1.5)
  • Shape: Square
  • Size: 230 x 62mm
  • Steel: 40Cr, hardened (10.9)
  • Paint / Finish: Black paint

Inclusions

  • 1 leaf spring u-bolt

Vehicle Fitment

Ford Ranger: PY (2022+) 4cyl Diesel; PY (2022+) 4cyl Diesel GVM Upgrade (3,600kg); PY (2022+) 4cyl Diesel GVM Upgrade (3,800kg); PY (2022+) V6 Diesel; PY (2022+) V6 Diesel GVM Upgrade (3,600kg); PY (2022+) V6 Diesel GVM Upgrade (3,800kg)

Mitsubishi Triton: MV (2024+)

Nissan Navara: D27 2026+

Toyota Hilux: 150 Series (N70) 2005 - 2015; AN2 (N90) 2026+; Gen 8 (N80) 2015 - 11/2025; Gen 8 (N80) 2015 - 11/2025 GVM Upgrade (3,550kg); Gen 8 (N80) 2015 - 11/2025 GVM Upgrade (3,750kg)

Volkswagen Amarok: NF (2023+) 4cyl; NF (2023+) 4cyl GVM Upgrade (3,600kg); NF (2023+) 4cyl GVM Upgrade (3,800kg); NF (2023+) V6 Diesel; NF (2023+) V6 Diesel GVM Upgrade (3,600kg); NF (2023+) V6 Diesel GVM Upgrade (3,800kg)

FAQ

Will it fit my vehicle? Check the model, series, year and any application notes above, including required companion parts.
