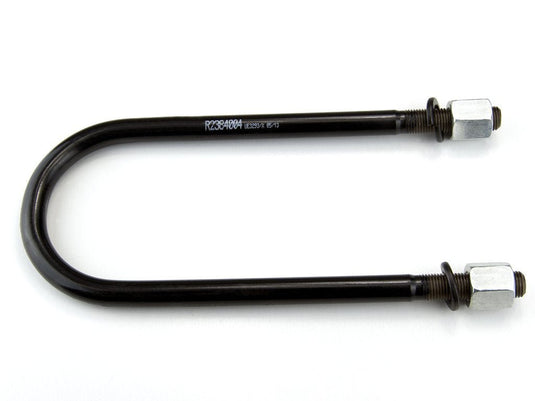

Outback Armour Leaf Spring U-Bolt OASU2384004
Choose Outback Armour OASU2384004 leaf spring u-bolt for the vehicle applications below. Match the thread, internal width and length to the axle and leaf spring pack.
Specifications
- Part number: OASU2384004
- Product: UBolt - M14 x 84 ID (RND) x 245 L
- Supply unit: each
- Quantity required per vehicle: 4
- Hardened steel, forge rolled threads.
- Material: Hardened steel
- Thread: Rolled threads (M14 x 1.5)
- Steel: 40Cr, hardened (10.9)
- Paint / Finish: Black paint
- Shape: Round
- Size: 245 x 84mm
Inclusions
- 1 leaf spring u-bolt
Vehicle Fitment
Toyota Land Cruiser: 78 Series (6 Cyl 1999-2006); 78 Series (V8 08/2012 - 08/2023); 78 Series (V8 2007-07/2012); 78 Series J7 (4 Cyl 2023+); 78 Series J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 78 Series J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 78 Series J7 (V8 2023+); 78 Series J7 (V8 2023+) GVM Upgrade (3,800kg); 78 Series J7 (V8 2023+) GVM Upgrade (4,200kg); 79 Series (Dual Cab) (V8 2012 - 08/2023); 79 Series (Dual Cab) J7 (4 Cyl 2023+); 79 Series (Dual Cab) J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 79 Series (Dual Cab) J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 79 Series (Dual Cab) J7 (V8 2023+); 79 Series (Dual Cab) J7 (V8 2023+) GVM Upgrade (3,800kg); 79 Series (Dual Cab) J7 (V8 2023+) GVM Upgrade (4,200kg); 79 Series (Single Cab) (6 Cyl Pre 2007); 79 Series (Single Cab) (V8 08/2012-09/2016); 79 Series (Single Cab) (V8 10/2016 - 08/2023); 79 Series (Single Cab) (V8 2007-07/2012); 79 Series (Single Cab) J7 (4 Cyl 2023+); 79 Series (Single Cab) J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 79 Series (Single Cab) J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 79 Series (Single Cab) J7 (V8 2023+); 79 Series (Single Cab) J7 (V8 2023+) GVM Upgrade (3,800kg); 79 Series (Single Cab) J7 (V8 2023+) GVM Upgrade (4,200kg)
FAQ
Will it fit my vehicle? Check the model, series, year and any application notes above, including required companion parts.
