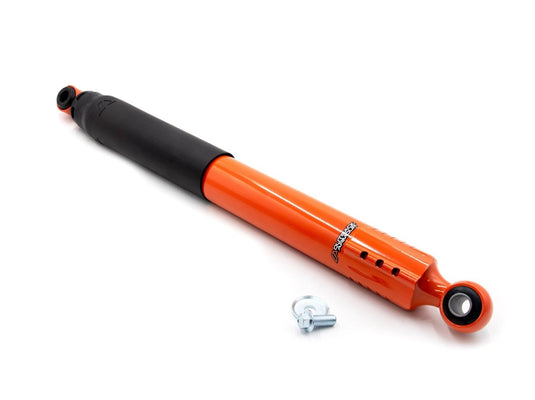

Outback Armour Rear Shock Absorber Digressive - OASU0140032-DSV

Piranha Off Road Products

SKU: OASU0140032-DSV

$245.00
$245.00
Sale Sold out
/
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
Out of stock

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

Outback Armour Rear Shock Absorber Digressive OASU0140032-DSV

Choose Outback Armour OASU0140032-DSV rear shock absorber for the vehicle applications below. Digressive damping manages body movement while allowing the suspension to respond to rough surfaces.

Specifications

  • Part number: OASU0140032-DSV
  • Product: Shock Absorber - Rear - TLC70 - Digressive (DSV)
  • Supply unit: each
  • Quantity required per vehicle: 2
  • 65mm twin tube - digressive valving.
  • Long travel rear
  • Piston: 40mm digressive
  • Piston Rod: 18mm hard chromed
  • Lift Range: 2" to 3" lift (50mm-75mm)
  • Protection: Synthetic dust boot
  • Seal: Triple-lip high temperature viton
  • Steel tube: Hydraulic pressure tube
  • Bushings: Natural rubber
  • Secondary Seal: Wiper/scraper seal
  • Paint / Finish: Orange, baked enamel

Fitment Notes

  • These are long travel rear shock absorbers to suit 2" or 3" lifts.
  • Due to the length of these shock absorbers they are not suited to be installed on vehicles with rear airbags.

Inclusions

  • 1 rear shock absorber

Vehicle Fitment

Toyota Land Cruiser: 76 Series (V8 08/2012 - 08/2023); 78 Series (V8 08/2012 - 08/2023); 78 Series (V8 2007-07/2012); 79 Series (Single Cab) (6 Cyl Pre 2007); 79 Series (Single Cab) (V8 08/2012-09/2016); 79 Series (Single Cab) (V8 10/2016 - 08/2023); 79 Series (Single Cab) (V8 2007-07/2012)

Application details: Maximum wheel-centre-to-guard height: 610mm

Toyota Land Cruiser: 76 Series (V8 2007-07/2012); 76 Series J7 (4 Cyl 2023+); 76 Series J7 (V8 2023+); 78 Series (6 Cyl 1999-2006); 78 Series J7 (4 Cyl 2023+); 78 Series J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 78 Series J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 78 Series J7 (V8 2023+); 78 Series J7 (V8 2023+) GVM Upgrade (3,800kg); 78 Series J7 (V8 2023+) GVM Upgrade (4,200kg); 79 Series (Dual Cab) (V8 2012 - 08/2023); 79 Series (Dual Cab) J7 (4 Cyl 2023+); 79 Series (Dual Cab) J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 79 Series (Dual Cab) J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 79 Series (Dual Cab) J7 (V8 2023+); 79 Series (Dual Cab) J7 (V8 2023+) GVM Upgrade (3,800kg); 79 Series (Dual Cab) J7 (V8 2023+) GVM Upgrade (4,200kg); 79 Series (Single Cab) J7 (4 Cyl 2023+); 79 Series (Single Cab) J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 79 Series (Single Cab) J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 79 Series (Single Cab) J7 (V8 2023+); 79 Series (Single Cab) J7 (V8 2023+) GVM Upgrade (3,800kg); 79 Series (Single Cab) J7 (V8 2023+) GVM Upgrade (4,200kg)

FAQ

Is this sold as a pair? This part is supplied individually. Match it to the vehicle and suspension configuration listed.
