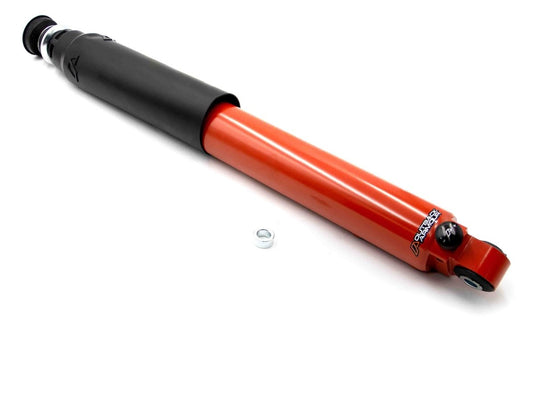

Outback Armour Rear Shock Absorber Adjustable Bypass OASU0165073-ADJ
Choose Outback Armour OASU0165073-ADJ rear shock absorber for RAM 1500 DT (2019+). Adjustable internal bypass lets you tune damping for changing loads and terrain.
Specifications
- Part number: OASU0165073-ADJ
- Product: Shock Absorber - Rear - RAM DT 1500- Adjustable
- Supply unit: each
- Quantity required per vehicle: 2
- 65mm twin tube.
- 20+ settings for damping control
- Must be used with OASU4238003 rear bump stop kit
- Maximum wheel-centre-to-guard height: 670mm
- Piston: 40mm high-flow performance
- Open/Extended Length: 640mm
- Piston Rod: 18mm hard chromed
- Lift Range: 2" to 3" lift (50mm-75mm)
- Protection: Synthetic dust boot
- Seal: Triple-lip high temperature viton
- Steel tube: Hydraulic pressure tube
- Bushings: Natural rubber
- Secondary Seal: Wiper/scraper seal
- Paint / Finish: Orange, baked enamel
Inclusions
- 1 rear shock absorber
Vehicle Fitment
- RAM 1500 DT (2019+)
FAQ
Is this sold as a pair? This part is supplied individually. Match it to the vehicle and suspension configuration listed.
Description
Outback Armour Rear Shock Absorber Adjustable Bypass OASU0165073-ADJ
Choose Outback Armour OASU0165073-ADJ rear shock absorber for RAM 1500 DT (2019+). Adjustable internal bypass lets you tune damping for changing loads and terrain.
Specifications
- Part number: OASU0165073-ADJ
- Product: Shock Absorber - Rear - RAM DT 1500- Adjustable
- Supply unit: each
- Quantity required per vehicle: 2
- 65mm twin tube.
- 20+ settings for damping control
- Must be used with OASU4238003 rear bump stop kit
- Maximum wheel-centre-to-guard height: 670mm
- Piston: 40mm high-flow performance
- Open/Extended Length: 640mm
- Piston Rod: 18mm hard chromed
- Lift Range: 2" to 3" lift (50mm-75mm)
- Protection: Synthetic dust boot
- Seal: Triple-lip high temperature viton
- Steel tube: Hydraulic pressure tube
- Bushings: Natural rubber
- Secondary Seal: Wiper/scraper seal
- Paint / Finish: Orange, baked enamel
Inclusions
- 1 rear shock absorber
Vehicle Fitment
- RAM 1500 DT (2019+)
FAQ
Is this sold as a pair? This part is supplied individually. Match it to the vehicle and suspension configuration listed.
