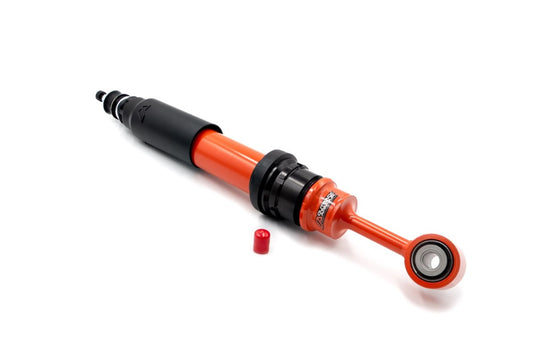

Outback Armour Front Strut Adjustable - OASU0865043-ADJ

Outback Armour Front Strut Adjustable Bypass OASU0865043-ADJ

Choose Outback Armour OASU0865043-ADJ front strut for the vehicle applications below. Adjustable internal bypass lets you tune damping for changing loads and terrain.

Specifications

• Part number: OASU0865043-ADJ
• Product: Strut - Front - Adjustable Bypass
• Supply unit: each
• Quantity required per vehicle: 2
• 65mm twin tube
• Threaded - height adjustable spring seat
• 20+ settings for damping control
• Piston: 45mm high-flow performance
• Piston Rod: 20mm hard chromed
• Lift Range: 1" to 1.5" lift (25mm-35mm)
• Protection: Synthetic dust boot
• Seal: Triple-lip high temperature viton
• Steel tube: Hydraulic pressure tube
• Bushings: Natural rubber
• Paint / Finish: Orange, baked enamel

Fitment Notes

• Operate and service the damping adjuster regularly.

Inclusions

• 1 front strut

Vehicle Fitment

Application details: Maximum wheel-centre-to-guard height: 570mm

• Toyota Hilux GR Sport (2023 - 11/2025)

Application details: Maximum wheel-centre-to-guard height: 560mm

• Toyota Hilux Rogue (2023 - 11/2025)

FAQ

Is this sold as a pair? This part is supplied individually. Match it to the vehicle and suspension configuration listed.
