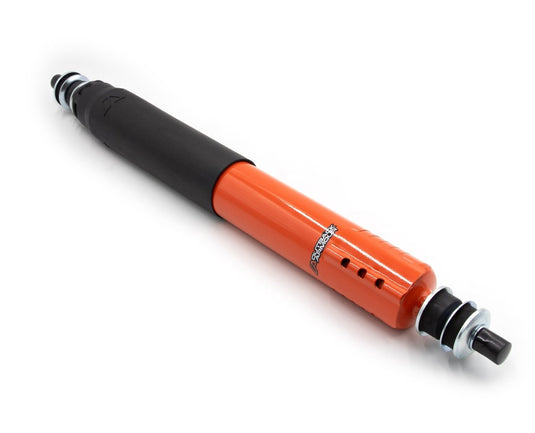

Outback Armour Front Shock Absorber Digressive OASU0140031-DSV
Choose Outback Armour OASU0140031-DSV front shock absorber for the vehicle applications below. Digressive damping manages body movement while allowing the suspension to respond to rough surfaces.
Specifications
- Part number: OASU0140031-DSV
- Product: Shock Absorber - Front - TLC70 - Digressive (DSV)
- Supply unit: each
- Quantity required per vehicle: 2
- 65mm twin tube - digressive valving.
- Long travel front, must be used with sway bar spacer and either coil spring OASU1070002 or OASU1070003
- Piston: 40mm digressive
- Piston Rod: 18mm hard chromed
- Lift Range: 2" to 3" lift (50mm-75mm)
- Protection: Synthetic dust boot
- Seal: Triple-lip high temperature viton
- Steel tube: Hydraulic pressure tube
- Bushings: Natural rubber
- Secondary Seal: Wiper/scraper seal
- Paint / Finish: Orange, baked enamel
Fitment Notes
- These are long travel front shock absorbers to suit 2" or 3" lifts and Use with sway bar spacer kit OASU3322006 to prevent front driveshaft to sway bar contact when articulating.
- Coil spring part numbers OASU1070002 or OASU1070003 must be used to ensure that the springs remain trapped at full extension of the shock absorbers.
Inclusions
- 1 front shock absorber
Vehicle Fitment
Toyota Land Cruiser: 76 Series (V8 08/2012 - 08/2023); 79 Series (Single Cab) (V8 08/2012-09/2016)
Application details: Maximum wheel-centre-to-guard height: 590mm
Toyota Land Cruiser: 76 Series (V8 2007-07/2012); 76 Series J7 (4 Cyl 2023+); 76 Series J7 (V8 2023+); 78 Series (6 Cyl 1999-2006); 78 Series (V8 08/2012 - 08/2023); 78 Series (V8 2007-07/2012); 78 Series J7 (4 Cyl 2023+); 78 Series J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 78 Series J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 78 Series J7 (V8 2023+); 78 Series J7 (V8 2023+) GVM Upgrade (3,800kg); 78 Series J7 (V8 2023+) GVM Upgrade (4,200kg); 79 Series (Dual Cab) (V8 2012 - 08/2023); 79 Series (Dual Cab) J7 (4 Cyl 2023+); 79 Series (Dual Cab) J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 79 Series (Dual Cab) J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 79 Series (Dual Cab) J7 (V8 2023+); 79 Series (Dual Cab) J7 (V8 2023+) GVM Upgrade (3,800kg); 79 Series (Dual Cab) J7 (V8 2023+) GVM Upgrade (4,200kg); 79 Series (Single Cab) (6 Cyl Pre 2007); 79 Series (Single Cab) (V8 2007-07/2012)
FAQ
Is this sold as a pair? This part is supplied individually. Match it to the vehicle and suspension configuration listed.
