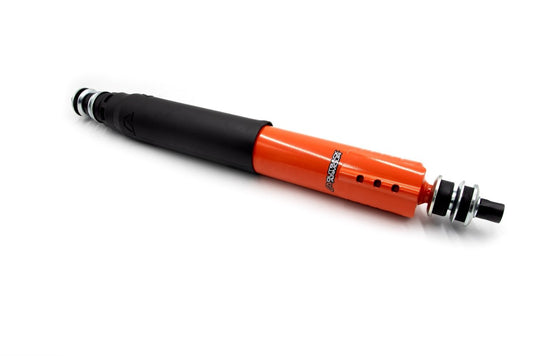

Outback Armour Front Shock Absorber Digressive OASU0140014-DSV
Choose Outback Armour OASU0140014-DSV front shock absorber for the vehicle applications below. Digressive damping manages body movement while allowing the suspension to respond to rough surfaces.
Specifications
- Part number: OASU0140014-DSV
- Product: Digressive - Front Shock
- Supply unit: each
- Quantity required per vehicle: 2
- 65mm twin tube - digressive valving.
- Piston: 40mm digressive
- Piston Rod: 18mm hard chromed
- Lift Range: up to 2" lift (50mm)
- Protection: Synthetic dust boot
- Seal: Triple-lip high temperature viton
- Steel tube: Hydraulic pressure tube
- Bushings: Natural rubber
- Secondary Seal: Wiper/scraper seal
- Paint / Finish: Orange, baked enamel
Inclusions
- 1 front shock absorber
Vehicle Fitment
Application details: Maximum wheel-centre-to-guard height: 585mm
Nissan Patrol: GU Y61 Wagon 1997+
Toyota Land Cruiser: 78 Series (6 Cyl 1999-2006)
Application details: Maximum wheel-centre-to-guard height: 590mm
Toyota Land Cruiser: 76 Series (V8 08/2012 - 08/2023); 76 Series (V8 2007-07/2012); 76 Series J7 (4 Cyl 2023+); 76 Series J7 (V8 2023+); 78 Series (V8 08/2012 - 08/2023); 78 Series (V8 2007-07/2012); 78 Series J7 (4 Cyl 2023+); 78 Series J7 (V8 2023+); 79 Series (Dual Cab) (V8 2012 - 08/2023); 79 Series (Dual Cab) J7 (V8 2023+); 79 Series (Single Cab) (6 Cyl Pre 2007); 79 Series (Single Cab) (V8 08/2012-09/2016); 79 Series (Single Cab) (V8 10/2016 - 08/2023); 79 Series (Single Cab) (V8 2007-07/2012); 79 Series (Single Cab) J7 (4 Cyl 2023+); 79 Series (Single Cab) J7 (4 Cyl 2023+) GVM Upgrade (3,800kg); 79 Series (Single Cab) J7 (4 Cyl 2023+) GVM Upgrade (4,200kg); 79 Series (Single Cab) J7 (V8 2023+); 79 Series (Single Cab) J7 (V8 2023+) GVM Upgrade (3,800kg); 79 Series (Single Cab) J7 (V8 2023+) GVM Upgrade (4,200kg)
Application details: Maximum wheel-centre-to-guard height: 590mm; Use with coil spring OASU1070001
Toyota Land Cruiser: 79 Series (Dual Cab) J7 (4 Cyl 2023+)
FAQ
Is this sold as a pair? This part is supplied individually. Match it to the vehicle and suspension configuration listed.
