Outback Armour Upper Control Arm Kit - OASU3532001-F

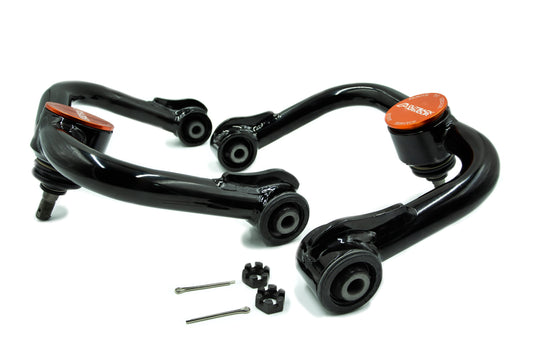

Outback Armour Upper Control Arm Kit OASU3532001-F

Choose Outback Armour OASU3532001-F upper control arm kit for the vehicle applications below. Replacement upper control arms support wheel alignment and suspension clearance on compatible lifted vehicles.

Specifications

• Part number: OASU3532001-F
• Product: Upper Control Arm Kit - Fixed
• Supply unit: kit
• Direct replacement for original UCA items
• 3 Degrees fixed caster correction
• Greasable ball joint & rubber bushings
• Suits front lifts from 30mm and above
• Ball Joint: Greasable - Fixed Position
• Bushings: Natural Rubber
• Caster Correction: 3 Degree - Fixed

Fitment Notes

• Natural rubber bushings offer superior vibration dampening and durability over other commonly used materials such as polyurethane.
• Tighten upper control arm bolts at normal ride height.
• Suits vehicles with front lifts from 30mm and above with larger tyres.
• Lifts above 65mm may result in premature wear of the ball joint and/or contact with the coil spring at full droop.

Inclusions

• Upper Control Arm Kit

Vehicle Fitment

• Toyota Land Cruiser 300 Series (2021+)
• Toyota Land Cruiser 300 Series (2021+) GR Sport

Application details: Optional fitment for GVM upgrades

• Toyota Land Cruiser 300 Series (2021+) GR Sport GVM Upgrade (3,800kg)
• Toyota Land Cruiser 300 Series (2021+) GR Sport GVM Upgrade (4,200kg)
• Toyota Land Cruiser 300 Series (2021+) GVM Upgrade (3,800kg)
• Toyota Land Cruiser 300 Series (2021+) GVM Upgrade (4,200kg)

FAQ

Will it fit my vehicle? Check the model, series, year and any application notes above, including required companion parts.
