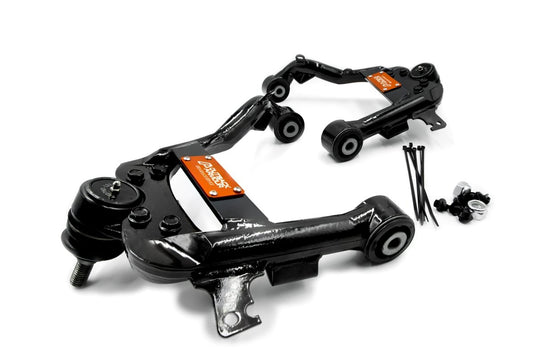

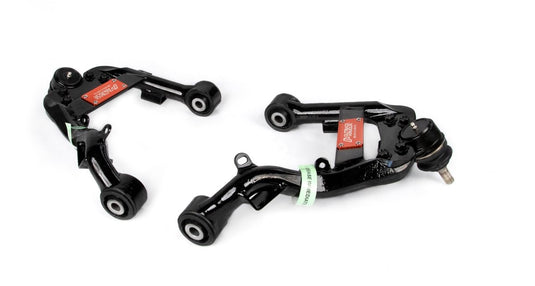

Outback Armour Upper Control Arm Kit OASU3519001-F
Choose Outback Armour OASU3519001-F upper control arm kit for the vehicle applications below. Replacement upper control arms support wheel alignment and suspension clearance on compatible lifted vehicles.
Specifications
- Part number: OASU3519001-F
- Product: Fixed Upper Control Arm Kit - Colorado (2012-2017) & DMax/MUX (2012-2019)
- Supply unit: kit
- Direct replacement for original UCA items
- 3 Degrees fixed caster correction
- Greasable ball joint & rubber bushings
- Suits front lifts from 30mm and above
- If Aftermarket rims are fitted, backspace must not be greater than the OE rim. It is the fitters responsibility to check for clearances.
- These UCA’s clear factory wheels and tyres which is a requirement for ADR compliance.

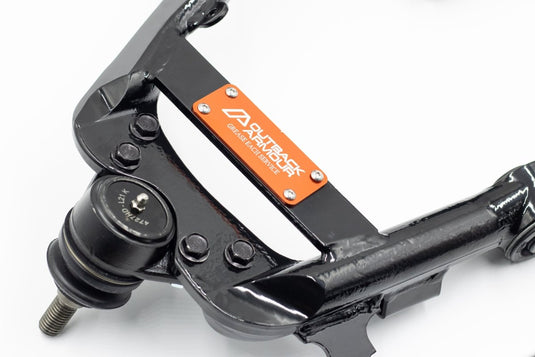

- Ball Joint: Greasable - Fixed Position
- Bushings: Natural Rubber
- Caster Correction: 3 Degree - Fixed
Fitment Notes
- Natural rubber bushings offer superior vibration dampening and durability over other commonly used materials such as polyurethane.
- Tighten upper control arm bolts at normal ride height.
- Suits vehicles with front lifts from 30mm and above with larger tyres.
- Lifts above 65mm may result in premature wear of the ball joint and/or contact with the coil spring at full droop.
- If Aftermarket rims are fitted, backspace must not be greater than the OE rim.
Inclusions
- Upper Control Arm Kit
Vehicle Fitment
- Holden Colorado 7 RG (2012-2017)
Application details: Does not fit the Holden Colorado 2017-2020 series
- Holden Colorado RG (2012-2020)
Application details: Does not fit the new 2020+ Series
- Isuzu D-Max RT (2012-2020)
- Isuzu D-Max RT (2012-2020) Adventure Spec
- Isuzu Mu-X RF10 (2013-2017)
- Isuzu Mu-X RF20 (2017-6/2021)
FAQ
Will it fit my vehicle? Check the model, series, year and any application notes above, including required companion parts.
