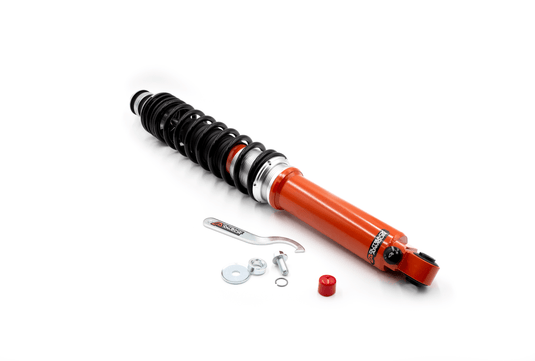

Outback Armour Assembled Rear Coilover Shock Adjustable Bypass OASU3965094-ADJ
Choose Outback Armour OASU3965094-ADJ assembled rear coilover shock for the vehicle applications below. Adjustable internal bypass lets you tune damping for changing loads and terrain.
Specifications
- Part number: OASU3965094-ADJ
- Product: Assembled Coil-Over - Rear Shock - Adjustable Bypass
- Supply unit: each
- Quantity required per vehicle: 2
- 65mm adjustable bypass, coil-over, includes coil.
- Shock Construction: 65mm twin tube
- Piston: 40mm high-flow performance
- Piston Rod: 18mm hard chromed
- Protection: Synthetic dust boot
- Seal: Triple-lip high temperature viton
- Steel tube: Hydraulic pressure tube
- Bushings: Natural rubber
- Secondary Seal: Wiper/scraper seal
- Paint / Finish: Orange, baked enamel
Fitment Notes
- Supplied with a complete fitting kit including rubber bushes, washers, coil spring and required fitting mounts.
Inclusions
- 1 assembled rear coilover shock
Vehicle Fitment
Application details: Suits vehicles with very heavy permanent rear loads.; Fits all vehicle versions including GX, GXL, VX, Sahara, Sahara ZX & GR Sport.; Suits vehicles with permanent heavy rear loads.
- Toyota Land Cruiser 300 Series (2021+)
- Toyota Land Cruiser 300 Series (2021+) GR Sport
Application details: Suits vehicles with permanent heavy rear loads.; Extended sway bar link may need to be fitted to help with sway bar clearance at full droop.
- Toyota Land Cruiser 300 Series (2021+) Extended Chassis
FAQ
Is this sold as a pair? This part is supplied individually. Match it to the vehicle and suspension configuration listed.
