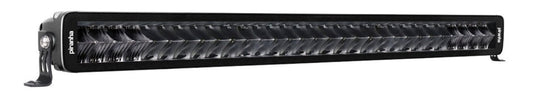

Piranha High Power 30-Inch LED Light Bar - Combo Beam
When you need serious visibility beyond the reach of standard high beams, the Piranha High Power 30-Inch LED Light Bar delivers powerful long-distance illumination with useful roadside spread.
Producing 13,484 effective lumens and reaching up to 929 metres at 1 lux, this 250W light bar is designed for remote touring, rural roads, off-road tracks and demanding work applications. Its combination beam uses 10-degree and 30-degree optics to project light well ahead while also illuminating the edges of the track.
Premium OSRAM LEDs produce a clear 5700K white light, while the curved reflector system controls and directs the output where it is most useful. With a rugged aluminium housing, high-impact polycarbonate lens and IP67 protection, the PIR301250C is built for Australian touring and working conditions.
Features
- Exceptional long-distance performance: Produces one lux of usable light at up to 929 metres.
- 13,484 effective lumens: Delivers powerful real-world illumination rather than relying solely on theoretical raw-lumen figures.
- Spot and flood combination beam: The 10-degree and 30-degree optics provide long-range penetration and wider peripheral visibility.
- Premium OSRAM LEDs: High-quality LED technology provides efficient and dependable light output.
- Clear 5700K light: Produces a daylight-style white beam that improves definition during night driving.
- Rugged construction: Features a die-cast aluminium housing and high-impact rimless polycarbonate lens.
- IP67 protection: Sealed against dust and tested for temporary water immersion.
- 12V and 24V compatible: The 9-33V DC operating range suits 4WDs, utes, trucks and commercial equipment.
- Thermal management: Controls operating temperature to protect the LEDs and maintain consistent output.
- Reduced electrical interference: EMC/EMI suppression helps minimise interference with UHF radios and vehicle electronics.
- Deutsch connector: Provides a secure and weather-resistant electrical connection.
- Five-year warranty: Backed by a five-year warranty for added confidence.
Specifications
- Part number: PIR301250C
- Size: 30 inch
- Dimensions: 815.6mm long x 70mm high x 67.34mm deep
- LED type: OSRAM
- Effective output: 13,484 lumens
- Beam distance: 929 metres at 1 lux
- Light intensity at 10 metres: 8,624 lux
- Beam pattern: Combination spot and flood
- Beam angles: 10 degrees and 30 degrees
- Colour temperature: 5700K
- Colour Rendering Index: CRI 72
- Power: 250W
- Current draw: 20.8A at 12V
- Operating voltage: 9-33V DC
- Ingress protection: IP67
- Housing: Die-cast aluminium
- Lens: High-impact polycarbonate
- Warranty: Five years
Inclusions
- 1 x Piranha 30-Inch LED Light Bar with Deutsch connector
- Black powder-coated stainless steel mounting brackets
- Stainless steel mounting bolts
Please note: A wiring kit is not included and must be purchased separately.
Installation Note
This light bar draws approximately 20.8A at 12V and must be installed using an appropriately rated wiring kit, cable, fuse and relay. A vehicle-specific high-beam interface may also be required. Professional installation is recommended.
