Enerdrive rigid solar panels:
Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200 watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20W panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.
About Enerdrive:
The name Enerdrive has been part of the Australian electrical landscape for nearly 16 years. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after. In 2008 ATL Limited morphed into Enerdrive.
In recent times Enerdrive has embarked on its own manufacturing program. We saw the need to control our own destiny and produce hi-end products that the Australian market place was demanding. This program has led to Enerdrive manufacturing our own range of ePOWER AC battery chargers & DC2DC battery charger along with our Lithium battery systems.
"With a mass of factories developing solar panels around the world, the biggest choice is Where to buy & even more importantly “What quality and support am I getting”. Enerdrive’s volume will allow us to ensure that any quality or warranty issue can be dealt with LOCALLY."

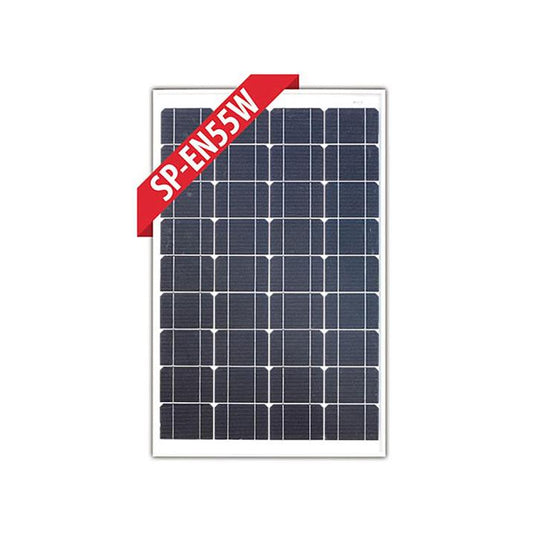

| Enerdrive Part Number | SP-EN55W |
| Max Power Pm(W) | 55 |
| Power Tolerance % | ± 3% |
| Max Power Voltage Vm(V) | 18 |
| Max Power Current Im(A) | 3.05 |
| Open Circuit Voltage Voc(V) | 22.29 |
| Short Circuit Current Isc(A) | 3.73 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 840 x 541 x 35 |
| Weight (kg) | 5 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
"
