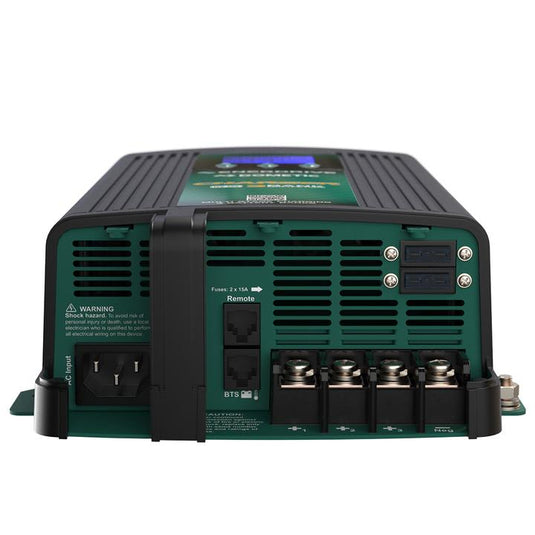

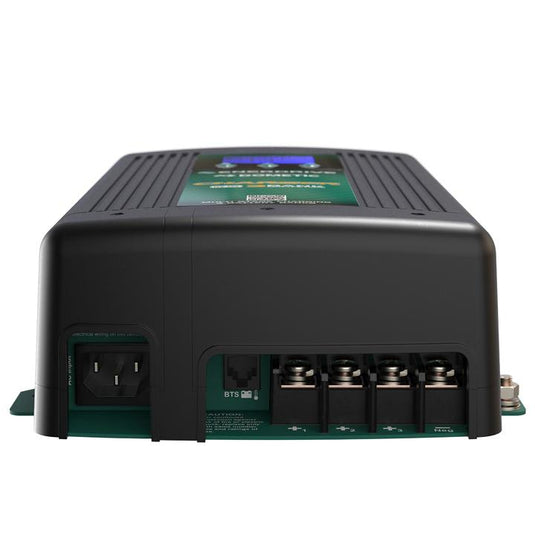

20A Battery Charger Features:
- Multistage Charging: Fully automatic charger with the ability to charge 3 separate battery banks.
- Separate Battery Banks: Isolated charging design with 3 separate banks.
- Programmable: Different charging algorithm for battery bank 1 compared to banks 2 and 3.
- Current Control: Adjustable current output.
- Smart Charging: Regulates output based on loads connected to battery banks.
- Wide AC Input Range: Works with 110V / 60Hz and 240V / 50Hz.
- LED Display: Easy-to-use menu with scrolling charger status.
- Silent Mode: Disables cooling fan for silent operation. Reduces charge output by half and locks out fan for 12 hours.

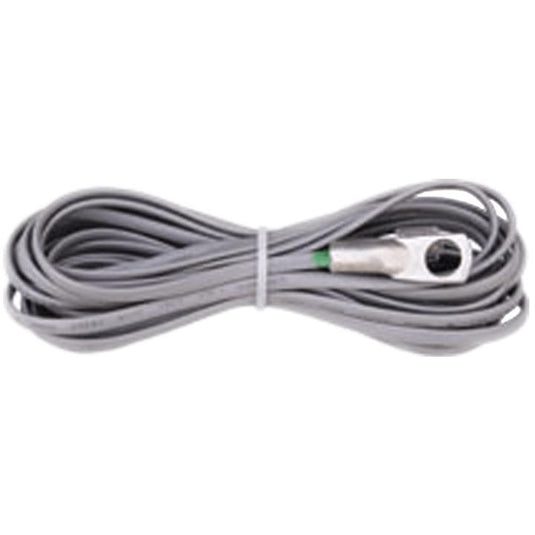

- Temperature Sensor: Included with 3 meter cable.
- 2 Year Warranty from an Australian company.
Multistage Charging Process
The Enerdrive ePOWER 20A Battery Charger is fully automatic and designed to recharge batteries using algorithms to maximize service life. It delivers 4 stages of charge: Bulk/Boost, Absorption, Float, and Maintenance.
- Stage 1 - Bulk/Boost Charge: Charged at full rated output current until battery reaches final charging voltage.
- Stage 2 - Absorption Charge: Charger voltage held steady, current drops as battery approaches full charge.
- Stage 3 - Float: Charger voltage lowered, prevents battery from being overcharged, allows charger to be used as DC power supply.
- Stage 4 - Maintenance: Timed "return to bulk" stage, switches charger from float to bulk after 7 days of constant operation in float.
1 PRIORITY - Charge Where You Need it Most
The ePOWER 20A Battery Charger prioritizes charging Bank 1, then cycles to banks 2 and 3. Over-ride function helps recover all 3 banks evenly. Priority function allows different battery chemistry for different banks.
All About Lithium
The Enerdrive ePOWER charger is suited for Lithium batteries, which require a constant current/voltage charge algorithm. The charger can be programmed for Lithium batteries and delivers full rated output constantly with a switch to power supply mode once battery is fully charged.
