Enerdrive DC2DC 30A 24V Charger MPPT Regulator

Vendor Enerdrive

SKU: EN3DC30-24

Regular price $648.00
Sale price $648.00 Regular price
Sale Sold out
Unit price
/per
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

Enerdrive 24V 30A DC2DC Battery Charger

Enerdrive 24V 30A DC2DC Battery Charger. A automatic battery charger that can charge from either alternator linked to a battery or via solar power with built-in Maximum Power Point Tracking (MPTT) Solar Controller. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.



Features:

  • Two totally independent DC Inputs for both engine and solar. regulation charging one house battery bank output.

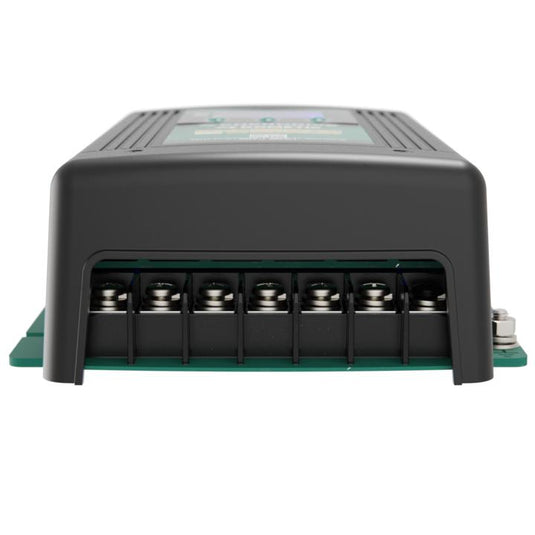

  • DC M6 screw terminals that will allow for large battery cable connection between all sources.
  • A dedicated Maximum Power Point (MPPT) solar regulator.
  • The same battery algorithms as included in our AC mains battery charger including a specific lithium charging profile.
  • 30A output up to 40+°C with thermo controlled fan cooling.

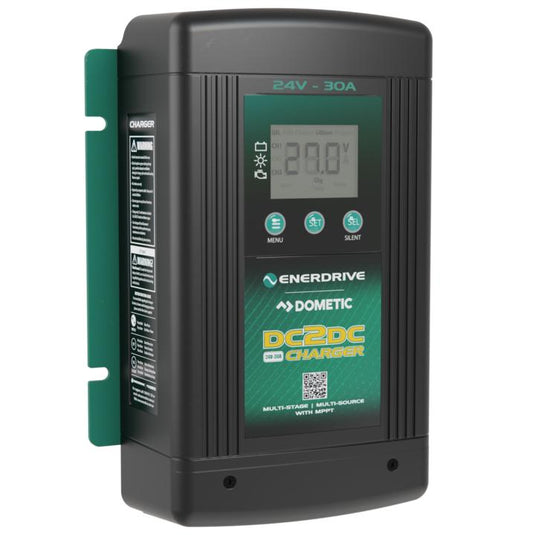

  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage.

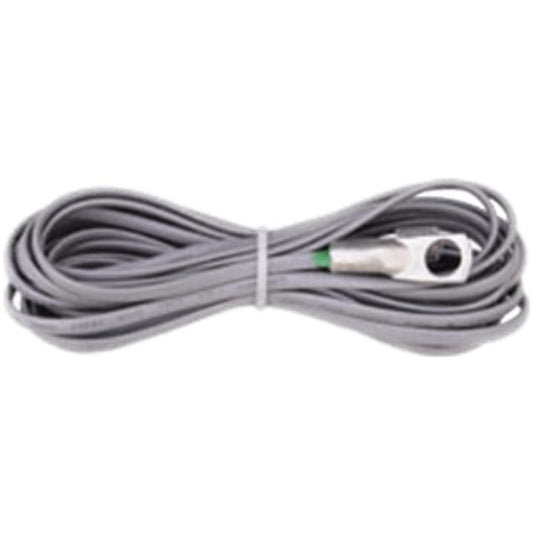

  • Temperature sensor included with charger for more accurate battery charging.
  • 5 year warranty.



Specifications:

  • Output Rating:
    • Output Voltage: 24V Nominal (17.0V min).
    • Output Current (Maximum): 30A.
    • Output Power: 865W.
  • Charger DC Output (CH1):
    • Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program.
    • Charger Voltage Range: 27.6V – 31.0V.
    • Float Voltage Range: 26.0V – 27.6V.
    • Charger Current (User Selectable): 5 / 10 / 20 / 30A (default 30A).
    • Equalize Voltage (Flooded Battery): 31.0V.
    • Equalize Charging Current: 10% of Bulk Current Setting.
    • Charging Control: 2 stage / 3 stage selectable (Default 3 Stage).
    • DC Output Bank: Single.
    • Current draw from CH1 when not operating: ≤50 mA.
    • Battery Temperature Setting: Low/ Normal/ High (Battery Temperature Sensor Standard).
    • Efficiency: 95%.
  • Input Rating (CH2 – MPPT Solar):
    • Input Voltage: 14.5 – 45VOC.
    • Maximum Solar Input: ≤23V input, 500W (600W allowable), ≥37.5V-45V input, 800W (1000W allowable).
  • Input Rating (CH3 – Start/Alternator):
    • Input Voltage: 10.5 – 16VDC / 21 – 32VDC.
  • Note: Specifications subject to change without notice.



Dimensions:

  • Dimensions (mm): 242 (H)x 172 (W)x 74 (D).
  • Weight (kg): 1.85.
Description

Enerdrive 24V 30A DC2DC Battery Charger

Enerdrive 24V 30A DC2DC Battery Charger. A automatic battery charger that can charge from either alternator linked to a battery or via solar power with built-in Maximum Power Point Tracking (MPTT) Solar Controller. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.



Features:

  • Two totally independent DC Inputs for both engine and solar. regulation charging one house battery bank output.
  • DC M6 screw terminals that will allow for large battery cable connection between all sources.
  • A dedicated Maximum Power Point (MPPT) solar regulator.
  • The same battery algorithms as included in our AC mains battery charger including a specific lithium charging profile.
  • 30A output up to 40+°C with thermo controlled fan cooling.
  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage.
  • Temperature sensor included with charger for more accurate battery charging.
  • 5 year warranty.



Specifications:

  • Output Rating:
    • Output Voltage: 24V Nominal (17.0V min).
    • Output Current (Maximum): 30A.
    • Output Power: 865W.
  • Charger DC Output (CH1):
    • Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program.
    • Charger Voltage Range: 27.6V – 31.0V.
    • Float Voltage Range: 26.0V – 27.6V.
    • Charger Current (User Selectable): 5 / 10 / 20 / 30A (default 30A).
    • Equalize Voltage (Flooded Battery): 31.0V.
    • Equalize Charging Current: 10% of Bulk Current Setting.
    • Charging Control: 2 stage / 3 stage selectable (Default 3 Stage).
    • DC Output Bank: Single.
    • Current draw from CH1 when not operating: ≤50 mA.
    • Battery Temperature Setting: Low/ Normal/ High (Battery Temperature Sensor Standard).
    • Efficiency: 95%.
  • Input Rating (CH2 – MPPT Solar):
    • Input Voltage: 14.5 – 45VOC.
    • Maximum Solar Input: ≤23V input, 500W (600W allowable), ≥37.5V-45V input, 800W (1000W allowable).
  • Input Rating (CH3 – Start/Alternator):
    • Input Voltage: 10.5 – 16VDC / 21 – 32VDC.
  • Note: Specifications subject to change without notice.



Dimensions:

  • Dimensions (mm): 242 (H)x 172 (W)x 74 (D).
  • Weight (kg): 1.85.
