Enerdrive ePOWER B - TEC 36V 100Ah Lithium Battery Enerdrive

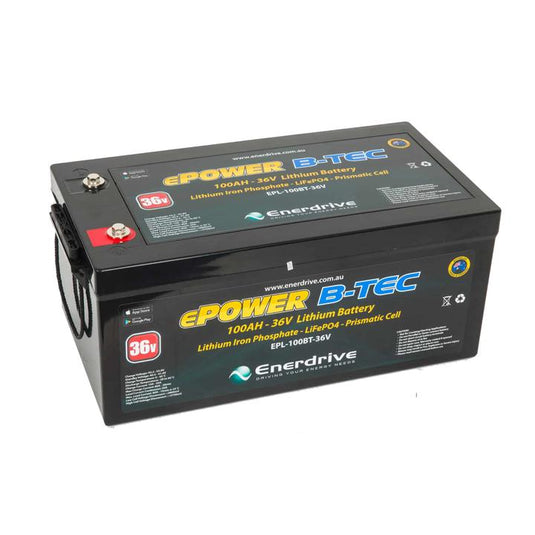

Enerdrive ePOWER B-TEC 36V 100Ah Lithium Battery

Enerdrive

SKU: EPL-100BT-36V

$4,160.00
$4,160.00
Sale Sold out
/
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

Enerdrive ePOWER B-TEC 36V 100Ah Lithium Battery

Enerdrive ePOWER B-TEC 36V 100Ah Lithium Battery. The lithium battery is designed for deep cycle applications. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.



Features:

  • >2500 Charge Cycles @ 80% DOD.
  • Bluetooth Monitoring via Phone App.
  • Built-In Reset Button making re-starting a flat battery a breeze.



Please note B-TEC batteries must not be installed –
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.



Specifications:

  • Nominal Voltage: 38.4V.
  • Nominal Capacity: 100Ah.
  • Cycle Life (DOD – 80% under controlled conditions): >2500 Cycles.
  • Standard Charge Specification (Lithium profile charger required):
    • Battery Charge Temperature: 0-45°C.
    • Normal Charge Voltage CV/CC:* 43.20-43.80V.
    • Standby (Float) Voltage: 40.5-41.40V.
    • Maximum Charge Current: 50A @ 25°C for 30mins.
    • Recommended Charge Current for Maximum Life: ≤33A.
  • Standard Discharge Specification:
    • Battery Discharge Temperature: -20-60°C.
    • Battery Output Voltage Range: 33.00-43.80V.
    • Maximum Discharge Current: 100A @ 25°C ± 5°C for 30mins.
    • Pulse Discharge Current: 450A for 1.0s.
    • Discharge Cut-off Voltage: ≤33.60V.
    • Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
  • Over-Charge Protection:
    • Over-charge Protection Per Cell: 3.90V ± 0.03V.
    • Over-charge Release Per Cell: 3.60V ± 0.05V.
    • Over-charge Release Method: Discharge below release voltage.
  • Over-Discharge Protection:
    • Over-discharge Protection Per Cell: 2.80V ± 0.05V.
    • Over-discharge Release Per Cell: 3.20V ± 0.05V.
    • Over-discharge Release Method: Apply Charge/Voltage ≥38.4V.
  • Over Current Protection:
    • Discharge Over Current: 110A for 30s – 450A for 1s.
    • Protection Reset Time: 5s Auto Release.
    • Over Current Release Method: Disconnect Load.
  • Over Temperature Protection:
    • Battery Discharge Over Temperature: Protection to 65°C ± 5°C, Release at 50°C ± 5°C.
    • Battery Charge Over Temperature: Protection to 55°C ± 5°C, Release at 45°C ± 5°C.
  • Short Circuit Protection: Auto release after 5s.
  • Storage Information:
    • Temperature & Humidity Range: ≤ 30 days -20°C-60°C, 5-75% RH, ≥ 90 days -10°C-45°C, 5-75% RH.
  • Case Construction: Hi Impact ABS Plastic.
  • 5 year warranty.

Note: Specifications subject to change without notice.



Dimensions:

  • Dimensions (mm): 519 (L) x 273 (W) x 222 (H).
  • Weight (kg): 37.7 approx.
Description

Enerdrive ePOWER B-TEC 36V 100Ah Lithium Battery

Enerdrive ePOWER B-TEC 36V 100Ah Lithium Battery. The lithium battery is designed for deep cycle applications. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.



Features:

  • >2500 Charge Cycles @ 80% DOD.
  • Bluetooth Monitoring via Phone App.
  • Built-In Reset Button making re-starting a flat battery a breeze.



Please note B-TEC batteries must not be installed –
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.



Specifications:

  • Nominal Voltage: 38.4V.
  • Nominal Capacity: 100Ah.
  • Cycle Life (DOD – 80% under controlled conditions): >2500 Cycles.
  • Standard Charge Specification (Lithium profile charger required):
    • Battery Charge Temperature: 0-45°C.
    • Normal Charge Voltage CV/CC:* 43.20-43.80V.
    • Standby (Float) Voltage: 40.5-41.40V.
    • Maximum Charge Current: 50A @ 25°C for 30mins.
    • Recommended Charge Current for Maximum Life: ≤33A.
  • Standard Discharge Specification:
    • Battery Discharge Temperature: -20-60°C.
    • Battery Output Voltage Range: 33.00-43.80V.
    • Maximum Discharge Current: 100A @ 25°C ± 5°C for 30mins.
    • Pulse Discharge Current: 450A for 1.0s.
    • Discharge Cut-off Voltage: ≤33.60V.
    • Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
  • Over-Charge Protection:
    • Over-charge Protection Per Cell: 3.90V ± 0.03V.
    • Over-charge Release Per Cell: 3.60V ± 0.05V.
    • Over-charge Release Method: Discharge below release voltage.
  • Over-Discharge Protection:
    • Over-discharge Protection Per Cell: 2.80V ± 0.05V.
    • Over-discharge Release Per Cell: 3.20V ± 0.05V.
    • Over-discharge Release Method: Apply Charge/Voltage ≥38.4V.
  • Over Current Protection:
    • Discharge Over Current: 110A for 30s – 450A for 1s.
    • Protection Reset Time: 5s Auto Release.
    • Over Current Release Method: Disconnect Load.
  • Over Temperature Protection:
    • Battery Discharge Over Temperature: Protection to 65°C ± 5°C, Release at 50°C ± 5°C.
    • Battery Charge Over Temperature: Protection to 55°C ± 5°C, Release at 45°C ± 5°C.
  • Short Circuit Protection: Auto release after 5s.
  • Storage Information:
    • Temperature & Humidity Range: ≤ 30 days -20°C-60°C, 5-75% RH, ≥ 90 days -10°C-45°C, 5-75% RH.
  • Case Construction: Hi Impact ABS Plastic.
  • 5 year warranty.

Note: Specifications subject to change without notice.



Dimensions:

  • Dimensions (mm): 519 (L) x 273 (W) x 222 (H).
  • Weight (kg): 37.7 approx.
