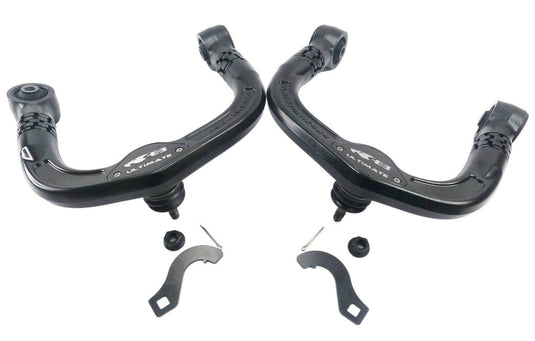

Blackhawk Ultimate Adjustable Upper Control Arms for Nissan Patrol Y62
Correct your lifted Patrol's wheel alignment with Blackhawk Ultimate Adjustable Upper Control Arms BHU5251P. Designed for the Nissan Patrol Y62, these forged arms provide on-vehicle adjustment to help restore suspension geometry after a lift, supporting more precise alignment, improved handling and reduced alignment-related tyre wear.
Features
- Adjustable on the vehicle: Fine-tune camber and caster without removing the arms, with a built-in 1-degree caster increase.
- Secure adjustment: Billet-machined 4140 adjusters and a proprietary dual-locking nut system hold the selected settings.
- High-articulation ball joints: Greaseable, serviceable ROADSAFE joints provide 80 degrees of articulation and use high-strength 4140 chromoly steel.
- Forged construction: Aluminium main frames combine low weight with strength, supported by forged 4140 bush apertures.
- Everyday comfort: OE-specification rubber bushes help isolate vibration.
- Protective finishes: Nitride-treated adjustment threads resist wear and corrosion, while the arms and bush apertures receive an e-coat finish.
Specifications
- Brand: Blackhawk 4x4
- Range: Ultimate Adjustable Upper Control Arms
- Part number: BHU5251P
- Vehicle: Nissan Patrol Y62
- Stated lift range: 30–75mm
- Replacement ball joint: BJ5251ULTE
- Replacement bush: S0536R
Developed using CAD and finite element analysis, with physical validation at Melbourne-based NATA testing facilities. Blackhawk lists the Ultimate range as NCOP and ADR compliant and provides supporting engineering documentation online.
Inclusions
- Blackhawk Ultimate upper control arms
- Fixing components
- Quick guide
Frequently Asked Questions
Why fit adjustable upper control arms to a lifted Patrol Y62?
A suspension lift changes wheel alignment. Adjustable arms provide additional camber and caster correction to help achieve the required alignment settings.
What suspension lift heights are supported?
Blackhawk specifies alignment correction for lifts from 30mm to 75mm. Follow the vehicle-specific fitting instructions when setting up your suspension.
Can the ball joints and bushes be replaced?
