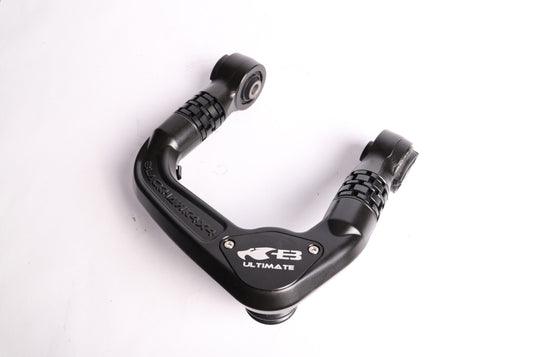

Blackhawk Ultimate Adjustable Upper Control Arms for Ford Ranger PX and Mazda BT-50
Fine-tune your suspension geometry with Blackhawk Ultimate Adjustable Upper Control Arms BHU3957R. Designed for Ford Ranger PX1, PX2 and PX3 and Mazda BT-50 UP and UR, these forged arms provide on-vehicle camber and caster adjustment to help improve handling and reduce alignment-related tyre wear after a suspension lift.
Features
- On-vehicle adjustment: Fine-tune alignment without removing the arms, with additional built-in caster correction.
- Secure settings: Billet-machined 4140 adjusters and a proprietary dual-locking nut system hold the selected adjustment.
- Forged construction: A 6082 aluminium main frame combines strength with low weight, supported by forged 4140 bush apertures.
- High-articulation ball joints: Greaseable ROADSAFE joints offer 80 degrees of articulation, with high-strength 4140 chromoly construction.
- Everyday comfort: OE-specification rubber bushes help isolate vibration.
- Durable adjustment mechanism: Nitride-treated chromoly steel threads resist wear and corrosion, with no aluminium adjustment threads.
- Serviceable design: Rebuildable ball joints and separately available replacement components support ongoing maintenance.
Specifications
- Brand: Blackhawk 4x4
- Range: Ultimate Adjustable Upper Control Arms
- Part number: BHU3957R
- Ford fitment: Ranger PX1, PX2 and PX3, 2011–2022
- Mazda fitment: BT-50 UP and UR, 2011–2020
- Height compatibility: Factory ride height through to 100mm suspension lift, as specified in Blackhawk's BHU3957R product bulletin.
- Replacement ball joint: BJ3957ULTE
- Replacement bush: S0527R
Developed using CAD modelling and finite element analysis, with physical validation at Melbourne-based NATA testing facilities. Blackhawk lists the arms as NCOP and ADR compliant and supplies supporting engineering documentation and fitting instructions online.
Inclusions
- Blackhawk Ultimate upper control arms
- Fixing components
- Quick guide
Frequently Asked Questions
Why fit adjustable upper control arms after lifting my vehicle?
A suspension lift changes wheel alignment. Adjustable arms provide additional camber and caster correction to help achieve suitable alignment settings.
Which Mazda BT-50 models do these arms suit?
BHU3957R suits the UP and UR series from 2011–2020. The later TF series uses a different application, so check the vehicle's series before ordering.
Are replacement ball joints and bushes available?
Yes. Replacement ball joint BJ3957ULTE and bush S0527R are available separately, allowing worn components to be replaced.
