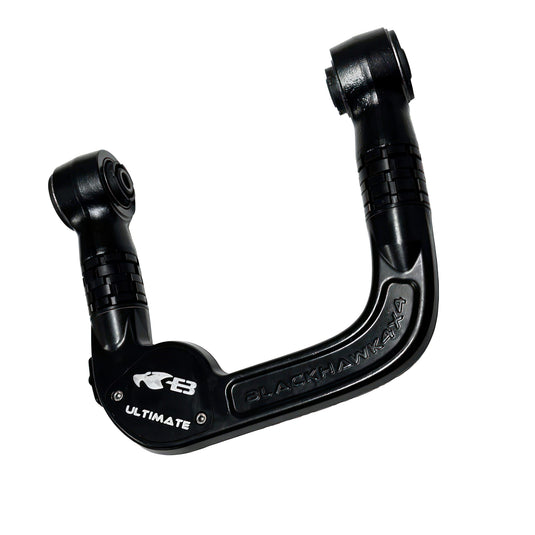

Blackhawk Ultimate Adjustable Upper Control Arms for Toyota Prado 120/150 and FJ Cruiser
Fine-tune your lifted Toyota's suspension geometry with Blackhawk Ultimate Adjustable Upper Control Arms BHU3841P. Designed for the Prado 120 Series, Prado 150 Series and FJ Cruiser, these forged arms allow on-vehicle camber and caster adjustment to help improve handling and reduce alignment-related tyre wear.
Features
- On-vehicle adjustment: Fine-tune camber and caster to suit your suspension setup, with 1 degree of additional caster in Blackhawk's recommended baseline settings.
- Forged construction: Aluminium main frames combine strength with low weight, supported by forged 4140 bush apertures.
- Secure alignment settings: Billet-machined 4140 adjusters and a proprietary dual-locking nut system hold the selected adjustment.
- High-articulation ball joints: Greaseable, serviceable ROADSAFE joints offer 80 degrees of articulation and use high-strength 4140 chromoly steel.
- Everyday comfort: OE-specification rubber bushes help isolate vibration.
- Durable finishes: Nitride-treated adjustment threads resist wear and corrosion, while e-coating protects the arms and bush apertures.
- ABS line retention: Supplied clamps secure the ABS leads to the control arms.
Specifications
- Brand: Blackhawk 4x4
- Range: Ultimate Adjustable Upper Control Arms
- Part number: BHU3841P
- Vehicle compatibility: Toyota Prado 120 Series, Prado 150 Series and FJ Cruiser
- Lift settings: Factory height through to 100mm suspension lift, as detailed in the BHU3841P fitting guide.
- Replacement ball joint: BJ3841ULTE
- Replacement bush: S0525R
Developed using CAD modelling and finite element analysis, with physical validation at Melbourne-based NATA testing facilities. Blackhawk lists the Ultimate range as NCOP and ADR compliant and provides supporting engineering documentation online.
Inclusions
- Left and right upper control arm assemblies with ball joints, bushes and adjustment components
- 2 ABS lead clamps and associated mounting screws
- 2 Blackhawk Ultimate adjustment spanners
- 1 bushing alignment rod, 16mm diameter
- Quick guide
Frequently Asked Questions
Why upgrade the upper control arms after a suspension lift?
A lift changes wheel alignment. Adjustable arms provide additional camber and caster correction to help restore suitable settings for your vehicle.
Is a wheel alignment required after installation?
Yes. Blackhawk requires a wheel alignment immediately after fitting. Installation should be completed by a qualified mechanic with specialist 4WD suspension knowledge.
Do the ball joints require maintenance?
