Blackhawk UCA3841TV2 Upper Control Arms for Toyota LandCruiser 200 Series
Improve suspension geometry on your lifted Toyota LandCruiser 200 Series with Blackhawk UCA3841TV2 upper control arms. Designed for 30-70mm suspension lifts, these replacement front arms provide 3 degrees of additional caster and corrected camber to help restore alignment and steering response. Factory adjustment points allow the wheel aligner to fine-tune the final settings.
The V2 design supports increased front axle ratings up to 2,000kg, making it suitable for compatible, engineered GVM upgrades. Durable construction and replaceable service components make these arms a practical upgrade for touring and off-road use.
Features
- Corrected alignment: Built-in caster and camber correction accommodates 30-70mm lifts.
- Strong tubular construction: DOM tubing with a 6mm wall provides a robust foundation.
- Improved clearance: Revised arm geometry increases space around wheels, tyres, coils and chassis components.
- Reduced ball joint binding: Reoriented housings help accommodate suspension droop, with fixed mounts that avoid adjustment slippage.
- Serviceable ball joints: Heavy-duty, greaseable Roadsafe joints use heat-treated chromoly studs and seats.
- Comfort and protection: OE-specification rubber bushes absorb vibration, while anodised alloy caps shield the ball joints from contaminants.
- Durable finish: Corrosion-resistant e-coating is topped with high-gloss industrial powder coating.
- Engineering support: Blackhawk describes the arms as ADR compliant, with design and testing documentation to NCOP VSB14 for vehicle engineering approval.
Specifications
- Part number: UCA3841TV2
- Vehicle: Toyota LandCruiser 200 Series
- Position: Front upper control arms
- Design: Fixed correction with fixed-position ball joints
- Lift suitability: 30-70mm
- Replacement parts: BJ3841HD ball joint, S0526R bush and UCABHCAP2 ball joint cap
Inclusions

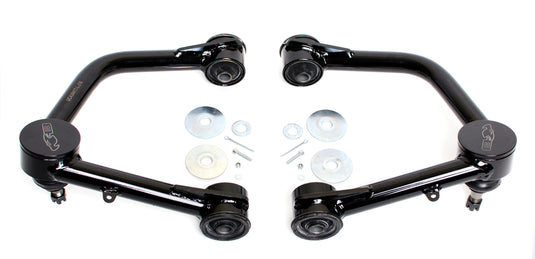

- Left and right upper control arms with rubber bushes and heavy-duty ball joints
- Ball joint protective caps
- ABS line mounting hardware
Original pivot bolts, bush washers and nuts are reused during installation.
Frequently Asked Questions
Are these adjustable upper control arms?
No. Caster correction is built into the arms, and the ball joints have fixed mounting positions. Final alignment uses the vehicle's factory adjusters.
Do these arms increase my LandCruiser's GVM?
No. The V2 arms accommodate a front axle rating up to 2,000kg within a compatible engineered upgrade. The vehicle's approved ratings depend on its certified GVM package; confirm compatibility with your installer or engineer.
What installation and servicing are required?
Use a qualified 4WD suspension mechanic and arrange a wheel alignment after fitting. Grease the ball joints before use, check clearances throughout suspension travel and recheck fastener tensions after 1,000km. Follow Blackhawk's fitting and servicing instructions.
