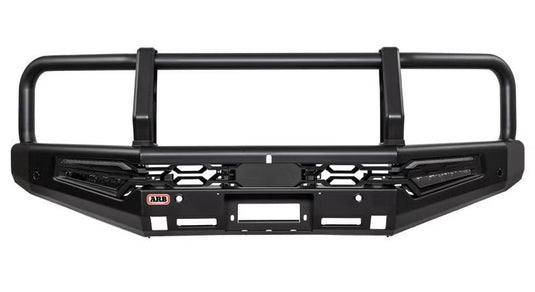

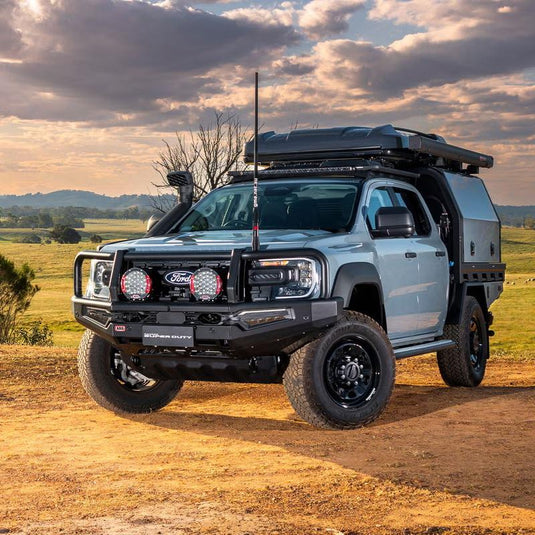

ARB Summit MkII Bull Bar for Ford Ranger Super Duty – 3440690
The ARB Summit MkII Bull Bar represents the next generation of ARB’s flagship frontal protection for the Ford Ranger Super Duty. Combining advanced manufacturing, integrated lighting and a clean modern profile, it delivers the strength, functionality and premium finish expected from an ARB steel bull bar.
A new all-in-one lighting system combines the fog light, daytime running light, clearance light and indicator into an integrated assembly. The removal of traditional front buffers creates a cleaner, uninterrupted appearance while showcasing ARB’s precision robotic welds.
Built from durable steel, the Summit MkII features 3mm-thick wings and pans together with large 60.3mm outer and centre tubes. A zinc-coated base and matte black powder-coated finish provide excellent corrosion resistance for touring, work and off-road environments.
Features
- Designed specifically for the Ford Ranger Super Duty
- Next-generation ARB Summit MkII design
- Heavy-duty steel construction
- Multi-fold upswept wings for strength and clearance
- Bumper-cut design for improved approach angles
- Integrated LED fog lights, indicators, clearance lights and DRLs
- Clean buffer-free front profile
- Precision robotic welds
- Provision for driving lights and pinning bolts
- Two CB aerial mounting brackets
- Two ARB Jack or Hi-Lift jacking points
- Protective underpanels included
- Compatible with electric winches using the dedicated mounting kit
- Zinc-coated base for corrosion protection
- Durable matte black powder-coated finish
- ADR compliant and airbag compatible
- Backed by ARB’s three-year warranty
Specifications
- Product Code: 3440690
- Product: ARB Summit MkII Bull Bar
- Vehicle: Ford Ranger Super Duty
- Material: Steel
- Wing and Pan Thickness: 3mm
- Outer and Centre Tube Diameter: 60.3mm
- Tube Wall Thickness: 2.6mm
- Base Coating: Zinc coated
- Finish: Smooth matte black powder coat
- Design: Bumper cut
- Lighting: Integrated LED fog, indicator, clearance and daytime running lights
- Jacking Points: Two
- CB Aerial Brackets: Two
- Winch Compatible: Yes, with dedicated winch mounting kit
- Underpanels: Included
- Net Weight: 92kg
- Compliance: ADR compliant and airbag compatible
- Warranty: Three years
Inclusions
- ARB Summit MkII steel bull bar
- Integrated LED fog, indicator, clearance and DRL assemblies
- Two CB aerial brackets
- Two integrated jacking points
- Protective underpanels
- Driving-light and pinning-bolt provisions
- Vehicle-specific bull bar mounting components
