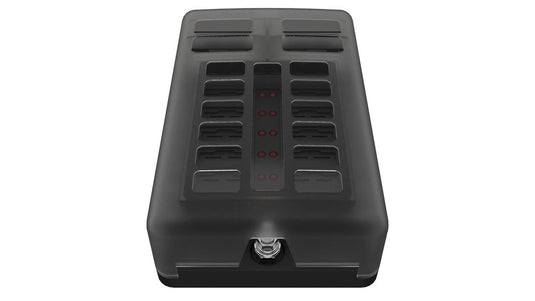

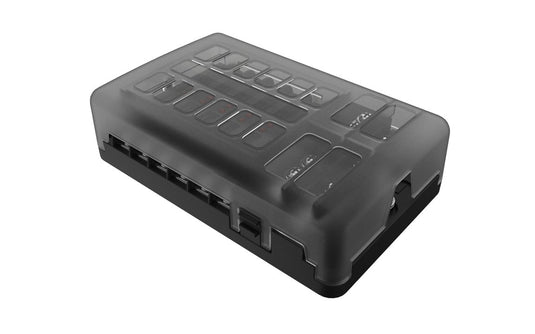

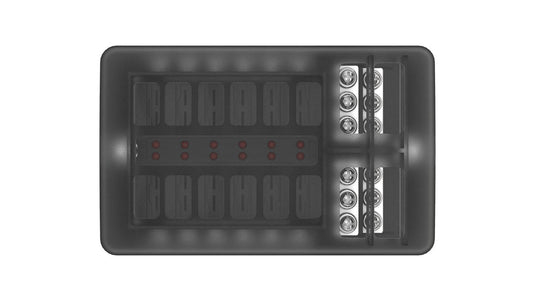

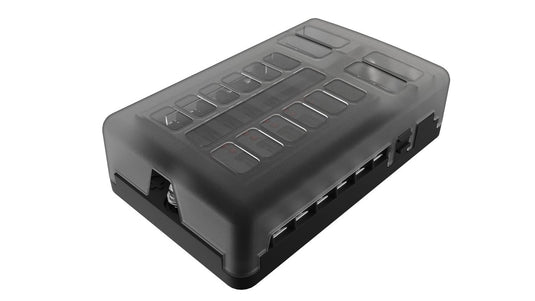

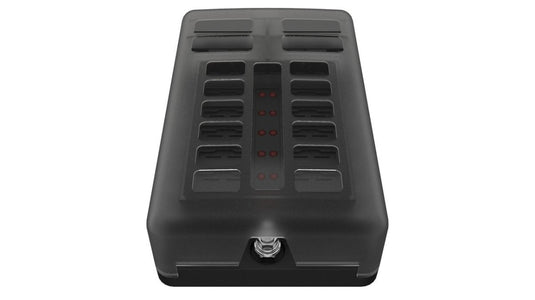

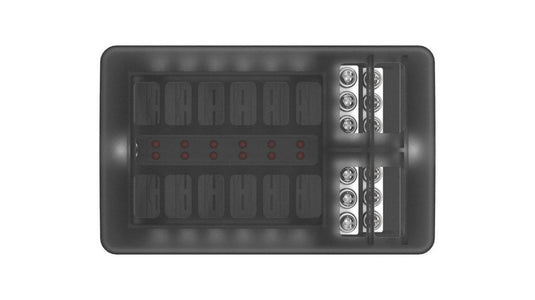

AP52012. Fuse Holder - 12 Way.
• Output terminal rating : M4 threaded studs ( 30A 32V DC.max). Wire size : #12-16 AWG.
• Suitable for Standard ATS size blade fuse and circuit breakers
• When a fuse is broken, the red LED lamp indicates. When the power is connected and the fuse is not plugged in, the LED lamp indicates.
• One input and twelve output circuits.
• It is widely used in Cars, Buses, Boats, RVs, Yachts, SUVs and Off-road vehicles.
Material : PC, PBT, Nickel plated copper
Input terminal : M5 threaded studs
Input rating : 100A 32V DC.max
Output Terminal : Screw terminal
Output rating : 30A max per circuit
Output circuit : 12 Way
