REDARC The Manager30 Battery Management System

Redarc

SKU: BMS1230S3R

$2,795.00
$2,795.00
Sale Sold out
/
(includes GST) Delivery calculated at checkout.
Available for pre-order. We will ship it once it is back in stock.
In stock and ready for Delivery/Fitting/Pick-up

Fast Delivery with Startrack Express

We can fit your products to your vehicle for you

Pick Up Available from Keysborough, VIC

Pairs well with

REDARC The Manager30 with RedVision Display - BMS1230S3R

REDARC The Manager30 with RedVision Display - BMS1230S3R. A battery management system designed to charge and maintain auxiliary batteries by incorporating AC, DC and solar inputs. For recreational automotive and marine applications. Like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240-volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote coloured RedVision battery monitor. Compatible with all vehicles and alternator systems including variable voltage alternators. Designed to charge an auxiliary battery from multiple sources simultaneously. If 12-volt solar power is available, solar power will be used before topping up the output charging current from another source mains (if available) or DC vehicle power when on the move.



Features:

  • Dedicated charging profile for lithium batteries.
  • Multi-Stage AC-DC battery charger.
  • Multi-Stage DC to DC charger.
  • Maximum Power Point Tracking Solar Regulator, deliver the maximum amount of power from portable solar panels, even during low light conditions.

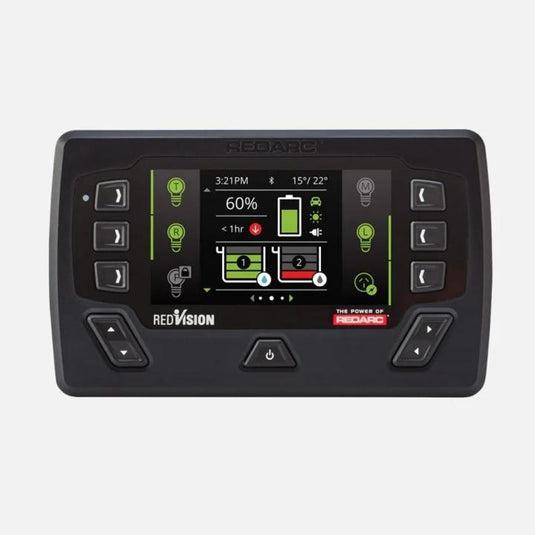

  • Improved, 4.3” coloured RedVision display battery monitor.
  • RedVision display allows connection to smartphone via App for Android and IOS devices. Designed to show auxiliary battery information and charge status through its coloured display with customisation options.
  • Dual battery isolator.
  • Load disconnect controller.
  • Super quiet operation.
  • Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries.
  • Tested to mains power safety standards in Australia.
  • 2 year warranty.



Specifications:

  • Battery chemistry: Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only.
  • Continuous rating: 30A.
  • Solar input voltage: 9 - 30V.
  • Input voltage: 240V AC / 9 - 30V DC.
  • Output voltage: 12V DC.
  • Max. charging voltage: 14.4 - 16V (settings dependant).
  • Max. rated output current: 30A.
  • Input fuse rating: 50A.
  • Output fuse rating: 40A (Not supplied) REDARC FK40 recommended.



Dimensions:

  • Height (mm): 78
  • Width (mm): 186
  • Depth/Length (mm): 445
  • Weight (kg): 5.5
Description

REDARC The Manager30 with RedVision Display - BMS1230S3R

REDARC The Manager30 with RedVision Display - BMS1230S3R. A battery management system designed to charge and maintain auxiliary batteries by incorporating AC, DC and solar inputs. For recreational automotive and marine applications. Like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240-volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote coloured RedVision battery monitor. Compatible with all vehicles and alternator systems including variable voltage alternators. Designed to charge an auxiliary battery from multiple sources simultaneously. If 12-volt solar power is available, solar power will be used before topping up the output charging current from another source mains (if available) or DC vehicle power when on the move.



Features:

  • Dedicated charging profile for lithium batteries.
  • Multi-Stage AC-DC battery charger.
  • Multi-Stage DC to DC charger.
  • Maximum Power Point Tracking Solar Regulator, deliver the maximum amount of power from portable solar panels, even during low light conditions.
  • Improved, 4.3” coloured RedVision display battery monitor.
  • RedVision display allows connection to smartphone via App for Android and IOS devices. Designed to show auxiliary battery information and charge status through its coloured display with customisation options.
  • Dual battery isolator.
  • Load disconnect controller.
  • Super quiet operation.
  • Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries.
  • Tested to mains power safety standards in Australia.
  • 2 year warranty.



Specifications:

  • Battery chemistry: Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only.
  • Continuous rating: 30A.
  • Solar input voltage: 9 - 30V.
  • Input voltage: 240V AC / 9 - 30V DC.
  • Output voltage: 12V DC.
  • Max. charging voltage: 14.4 - 16V (settings dependant).
  • Max. rated output current: 30A.
  • Input fuse rating: 50A.
  • Output fuse rating: 40A (Not supplied) REDARC FK40 recommended.



Dimensions:

  • Height (mm): 78
  • Width (mm): 186
  • Depth/Length (mm): 445
  • Weight (kg): 5.5
