REDARC BCDC Alpha 50A Across Engine Bay Install Wiring Kit
Simplify your dual battery installation with the REDARC BCDC Alpha 50A Across Engine Bay Install Wiring Kit — the complete wiring solution for when your start and auxiliary batteries are on opposite ends of the engine bay. This kit is designed specifically to ensure a clean, safe and reliable connection when using the 12 V 50 A DC-DC charger REDARC BCDC Alpha 50A Across Engine Bay Install Wiring Kit.
Key Features
Engine-bay ready – purpose-built for under-bonnet installations where batteries are located at opposite ends (approx. 1.5 m to 2.5 m apart).
Complete wiring solution – includes all necessary cables, fuses, fuse holders, connectors, protective conduit and cable ties so you don’t have to buy components separately.
Pre-crimped cables – cables arrive pre-crimped on one end; the other end can be trimmed to exact length for a tidy custom fit.
Flexible and clean install – suitable for a wide range of engine bay layouts, making installation straightforward and professional-looking.

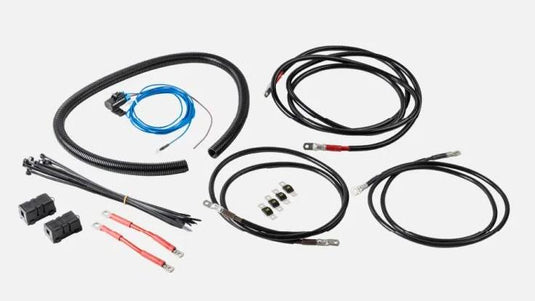

What’s Included in the Kit
1 × brown, 1 × black and 1 × red primary cables
60 A Fuse kit, including 4 × MIDI fuses and 2 × MIDI fuse-holders
2 × 150 mm red cables
1 m of protective conduit
15 cable ties to manage and secure wiring neatly
Blue control cable (includes 2 A MINI blade fuse, one long blue cable, and one short red/blue cable) for charger control circuits
Compatibility & Installation Notes
- Designed for use with the 12 V 50 A DC-DC chargers: BCDC Alpha 50A (BCDC12050B) and BCDC Alpha 50A R (BCDC12050R).
- Best suited when the start battery and auxiliary battery are separated by 1.5 m to 2.5 m — ideal for many modern vehicles and off-road setups.
- Cables are pre-crimped on one end for convenience; the installer trims the other ends to length for a neat, custom fit.
- For a clean under-bonnet mount, pair the wiring kit with a compatible BCDC mounting bracket (sold separately).
-
Because installations involve heavy-duty cables and fuses, the manufacturer recommends the kit be fitted by a qualified auto-electrician or suitably qualified installer.
Why It’s Worth It
Rather than sourcing cables, fuses and connectors individually — and risking compatibility issues or messy wiring — this kit consolidates everything into one pack. That saves you time, reduces installation complexity, and ensures a reliable, safe dual-battery system setup.
