Features
Enerdrive Solar Charge Controller benefits include:
Protects battery from overcharge and discharge
Only for 12 Volt solar panels and batteries
Handles up to 20 Amps of Array Current
Handles up to 350 Watts of solar power
Maintenance free protection of your solar panel and batteries
Maintains battery voltage
Maintain 12V batteries in a fully charged state
Product Features:
LED status indicator provides quick reference to Charger, Battery and load status
Selectable battery type
Temperature compensation
High precision on voltage set point
Wall mountable
Specifications

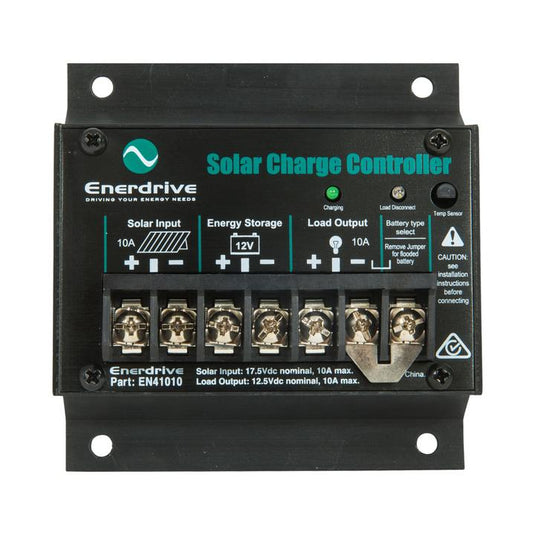

Enerdrive 12 V 10 A / 20 A Solar Charge Controllers
| Enerdrive Part Number | EN41010 | EN41020 |
| Battery voltage | 12 Vdc | 12 Vdc |
| Max. PV panel open circuit voltage | 26 Vdc | 26 Vdc |
| Maximum charge current | 10A | 20A |
| Maximum load current | 10A | 20A |
| Maximum load current | 20 A for 1 minute | 40 A for 1 minute |
| Operational Current (no load & no PV) | <10 mA | <15 mA |
| Regulated battery charging voltage | ||
| Flooded Battery | 14.6 Vdc | 14.6 Vdc |
| Sealed Battery | 14.2 Vdc | 14.2 Vdc |
| Operational Current (no load & no PV) | <10 mA | <10 mA |
| Voltage across terminal (PV to Battery) | <0.15 Vdc | <0.15 Vdc |
| Voltage across terminal (Battery to Load) | <0.10 Vdc | <0.10 Vdc |
| PV Reverse Polarity Protection | Yes | |
| Battery |
