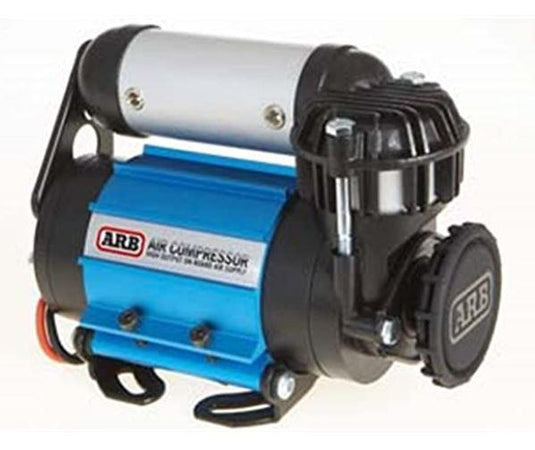

ARB CKMA12 Single On-Board Air Compressor 12V
The ARB CKMA12 Single On-Board Air Compressor is a proven 12V brushed compressor designed to provide a reliable, permanently mounted air source for 4WD touring, off-road driving and everyday vehicle use. Built for fast tyre inflation, ARB Air Locker activation and a range of other air supply functions, this compact on-board compressor is a dependable choice for work, play and remote travel.
Key Features
- ARB single brushed compressor design
- 12V on-board vehicle-mounted air compressor
- Ideal for fast 4WD tyre inflation after off-road driving
- Suitable for ARB Air Locker activation
- Compact and reliable permanently mounted air solution
- Sealed for moisture and dust resistance
- Hard-anodised cylinder bore to help reduce friction
- Teflon-impregnated carbon fibre piston seal for long service life
- Anodised mounting bracket helps dissipate motor heat
- Compressor can be repositioned 180 degrees on vehicle-mounted models
- Quality components for quiet operation and long-term reliability
- Constructed from lightweight, high-strength engineering-grade materials
- Over-pressure safety valve equipped
- Internally thermal protected motor to help prevent temperature damage
- Heavy-duty maxi-fuse for professional in-line circuit protection
- Includes full wiring loom and mounting hardware for easy installation
- Designed and manufactured by ARB in Kilsyth
- Backed by ARB’s 3-year warranty
Why Choose the ARB CKMA12?
The ARB CKMA12 is designed for drivers who want compressed air available whenever it is needed. Whether you are airing up tyres after a track, operating an ARB Air Locker or adding a practical on-board air system to your touring setup, this single compressor provides dependable performance in a compact and durable design.
Specifications
- Product Code: CKMA12
- Type: Single compressor
- Voltage: 12V DC
- Compressor Style: Brushed
- Product Classification: On-board
- Tyre Inflation: Fast
- Duty Cycle: 50%
- Maximum Air Flow: Up to 87.2L/min at 0kPa
- Air Flow at 200kPa: Up to 65.9L/min
- Current Rating at 0kPa: 14.2A at 20°C
- Current Rating at 200kPa: 25.2A at 20°C
- Switch: Pressure differential switch
- Overheating Protection: Yes
- Filter Type: Particulate filter
- Net Weight: 3.5kg
- Warranty: 3 years
Inclusions
- ARB CKMA12 single on-board air compressor
- Full wiring loom
- Universal mounting hardware
- Vehicle-mounted compressor kit components
Applications
- 4WD and off-road tyre inflation
- ARB Air Locker activation
- On-board compressed air systems
- Touring, camping and remote travel setups
- Work or recreational air supply applications
For a compact, reliable and permanently mounted 4x4 air solution, the ARB CKMA12 Single On-Board Air Compressor is a trusted choice for off-road drivers who need fast tyre inflation, Air Locker compatibility and proven ARB compressor performance.
