ARB Twin On-Board Air Compressor Mount Kit — Ford Ranger MY22 (3540360T)

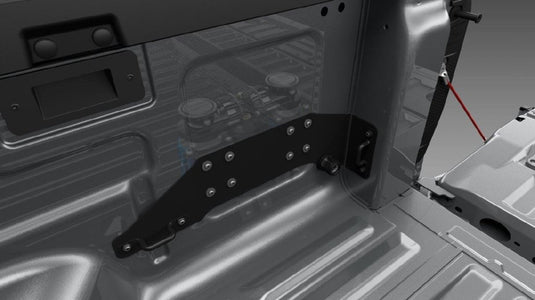

Mount your ARB Twin Compressor neatly inside the right-hand rear tub of your next-gen Ford Ranger. This laser-cut bracket system positions the compressor low, protected and quiet, with OEM-style switching and clear routing for wiring and the air chuck.
Why you’ll love it
- Factory-style fitment: Uses existing tie-down points and hardware locations for a secure, rattle-free install.
- Protected placement: Compressor sits behind the RHS wheel arch inside the tub for reduced exposure to heat and road spray.
- Ready for air accessories: Supports an air chuck through the tub or liner, and integrates cleanly with ARB’s optional manifold for lockers and tools.
- Switching your way: Use the supplied ARB rocker switch or connect to Ford’s factory Upfitter switches on compatible models.
Vehicle Compatibility
Designed for Ford Ranger MY22 (Next-Gen), right-hand tub install. Suits ARB Twin Compressor (included).
Specifications
- Kit Number: 3540360T (mount & fitment hardware).
- Compressor Supported: ARB Twin.
- Recommended Accessory: 171503 Manifold Kit (required when running Air Locker solenoids; recommended for frequent tool/tyre use).
- Drawer Integration: Use 3501051 Coupling when ARB drawers are fitted.
- Mount Location: RHS tub behind wheel arch; air chuck passes through body/tub liner via pre-marked template.
- Electrical: Vehicle-specific harness, dual 40A MIDI fuse, ground to RH chassis rail; Upfitter or ARB switch options.
Inclusions
- Compressor support bracket & vehicle-specific drilling template.
- ARB Twin Air Compressor
- Mounting hardware (M6/M8 fasteners, washers, pop rivets as required).
- Vehicle harness (6821428) and universal switch harness (6821430) with ARB rocker switch & plate.
- 0.5 m reinforced braided hose & push-lock female coupling for air chuck.
- Detailed step-by-step fitting instructions with torque specs and cut templates for bare tub, tub liner, or drawers.
Installation Notes
- Uses existing tie-down mounts; bracket bolts in with M8 hardware before compressor is secured with eight M6 screws.
- Air chuck hole size: Ø30 mm through tub (Ø18 mm in liner when fitted); deburr and paint cut edges.
- For heavy-duty cycle use or Air Lockers, fit ARB 171503 manifold; apply Loctite 569 to all air fittings.
- Harness routes along LH chassis rail with secure earth on RH rail; battery +ve via dual 40A MIDI fuse.
Description
ARB Twin On-Board Air Compressor Mount Kit — Ford Ranger MY22 (3540360T)
Mount your ARB Twin Compressor neatly inside the right-hand rear tub of your next-gen Ford Ranger. This laser-cut bracket system positions the compressor low, protected and quiet, with OEM-style switching and clear routing for wiring and the air chuck.
Why you’ll love it
- Factory-style fitment: Uses existing tie-down points and hardware locations for a secure, rattle-free install.
- Protected placement: Compressor sits behind the RHS wheel arch inside the tub for reduced exposure to heat and road spray.
- Ready for air accessories: Supports an air chuck through the tub or liner, and integrates cleanly with ARB’s optional manifold for lockers and tools.
- Switching your way: Use the supplied ARB rocker switch or connect to Ford’s factory Upfitter switches on compatible models.
Vehicle Compatibility
Designed for Ford Ranger MY22 (Next-Gen), right-hand tub install. Suits ARB Twin Compressor (included).
Specifications
- Kit Number: 3540360T (mount & fitment hardware).
- Compressor Supported: ARB Twin.
- Recommended Accessory: 171503 Manifold Kit (required when running Air Locker solenoids; recommended for frequent tool/tyre use).
- Drawer Integration: Use 3501051 Coupling when ARB drawers are fitted.
- Mount Location: RHS tub behind wheel arch; air chuck passes through body/tub liner via pre-marked template.
- Electrical: Vehicle-specific harness, dual 40A MIDI fuse, ground to RH chassis rail; Upfitter or ARB switch options.
Inclusions
- Compressor support bracket & vehicle-specific drilling template.
- ARB Twin Air Compressor
- Mounting hardware (M6/M8 fasteners, washers, pop rivets as required).
- Vehicle harness (6821428) and universal switch harness (6821430) with ARB rocker switch & plate.
- 0.5 m reinforced braided hose & push-lock female coupling for air chuck.
- Detailed step-by-step fitting instructions with torque specs and cut templates for bare tub, tub liner, or drawers.
Installation Notes
- Uses existing tie-down mounts; bracket bolts in with M8 hardware before compressor is secured with eight M6 screws.
- Air chuck hole size: Ø30 mm through tub (Ø18 mm in liner when fitted); deburr and paint cut edges.
- For heavy-duty cycle use or Air Lockers, fit ARB 171503 manifold; apply Loctite 569 to all air fittings.
- Harness routes along LH chassis rail with secure earth on RH rail; battery +ve via dual 40A MIDI fuse.
