Enerdrive 400W 12V Generation 2 True Sine Wave Inverter
Enerdrive 400W 12V Generation 2 True Sine Wave Inverter. A true sine wave inverter to deliver AC power to sensitive electronic devices and appliances, as a reliable AC power source for your home, boat, caravan, 4WD or commercial vehicle. A true sine wave inverter minimises the risk of damaging sensitive equipment you need on the road. Enjoy moments that matter with a peace of mind, with Enerdrive | Dometic to keep you connected and powered, no matter where your journey takes you.
Features:

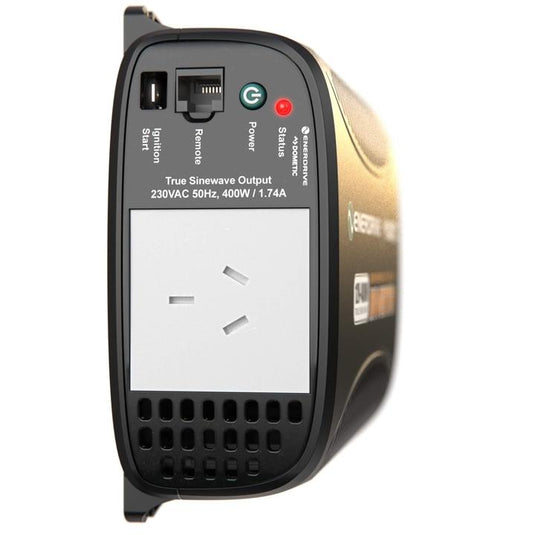

- Australian GPO Outlet.
- True Sine Wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life.
- Audio & Visual alarm with warning/error codes to alert user to check inverter condition before unit shutdown.
- Automatic shutdown protects overload, over temperature and low/high battery conditions.
- High surge capacity for products that require more power to start (2x constant).
- High efficiency conversion of battery available power to AC power.
- Mounting brackets for permanent installation.

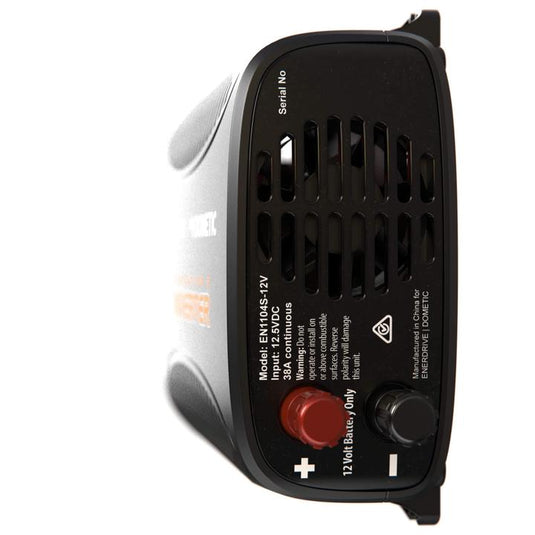

- Heavy duty DC battery stud connectors.
- Ignition Start terminal for turning the unit on and off using a +12V signal.

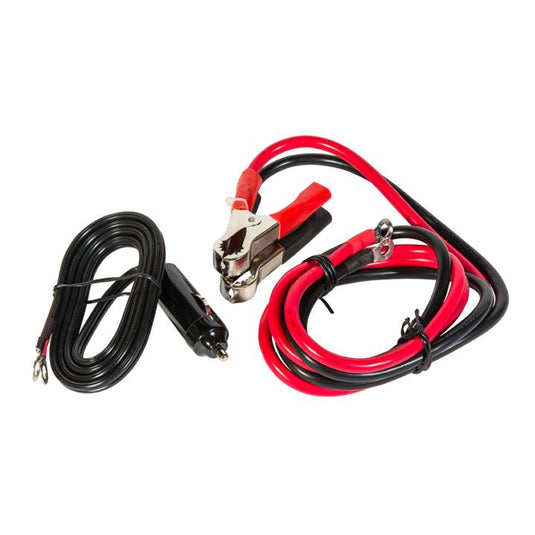

- Includes DC battery cable with HD alligator clips & 12V cigarette socket cable.
Specifications:
- AC Output Power: 400W.
- AC Output Current: 1.74A.
- AC Surge Power (Peak): 800W.
- AC Output Voltage: 230 Vac / 50 Hz.
- AC Output Waveform: True Sinewave.
- AC Output Socket: 1 outlet.
- Nominal DC Input Voltage: 12.5 VDC.
- No Load battery draw: <0.8 ADC.
- DC Input Voltage operating range: 10.5 – 15.9 VDC.
- Under Voltage Alarm: 11.0 VDC.
- Under Voltage Shutdown: 10.5 VDC.
- Under Voltage Recovery: 12.0 VDC.
- Over Voltage Shutdown: 15.9 VDC.
- Safety and Environmental:
- Conformance: All required Australian Standards.
- Operating Temperature: 0°C to 40°C.
- Storage Temperature: -20°C to 60°C.
- Relative Humidity: 5-90% noncondensing.
- 5 year warranty.
Dimensions:
- Dimensions (mm): 152 (W) x 218 (L) x 66 (H).
- Weight (kg): 1.1.
