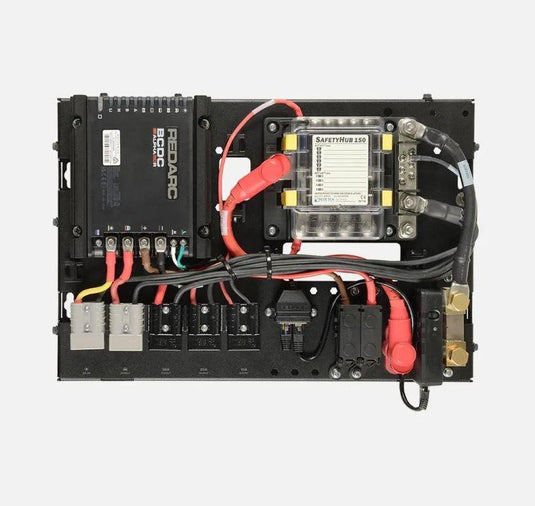

REDWorks Nomad50 Power Panel – Scalable Dual Battery Power for the Long Haul
Designed for travellers who go further, stay longer, and take more gear, the REDWorks Nomad50 Power Panel from REDARC delivers a powerful, pre-wired 12V power solution that’s ready to install straight out of the box. Built to simplify complex off-grid setups, the Nomad50 combines smart charging, intuitive monitoring, and flexible outputs into a compact, future-ready system.
Whether you’re powering fridges, lights, compressors, water pumps or other high-draw accessories, the Nomad50 gives you the confidence to expand your rig without fuss — making it ideal for overlanding, camping trips, work vehicles, and remote touring.
Key Features & Benefits
Smart, Efficient Charging
Includes the BCDC Alpha50 R 12V Battery Manager, delivering intelligent, multi-stage charging from both your vehicle alternator and solar simultaneously via the built-in MPPT solar regulator — so you get fast, safe and efficient recharging wherever you are.
Green Power Priority® prioritises solar input first, reducing alternator load and fuel consumption.
Compatible with all common battery types including lithium and heated lithium, with real-time charge mode adjustment to maximise battery health and lifespan.
Ready-to-Use Power Outputs
Three Anderson™ SB50 outputs provide flexible power feeds:
• 10A for low-draw devices such as USB sockets or standard fridges.
• 25A for medium-power loads like larger fridges, ovens, or compact compressors.
• 50A for high-draw accessories including larger compressors or electric jacks.
Integrated Monitoring & Control
Built-in Smart Battery Monitor delivers real-time insights on battery state of charge, remaining run time, and input/output current via the RedVision app on your phone.
LED interface on the BCDC charger provides clear battery status and fault indicators at a glance.
Expandable & Organised
A 10-way integrated fuse block (6 × 30A blade + 4 × 100A MIDI fuses) keeps wiring neat, protected and easy to expand as your setup grows.
Easily add accessories like lighting, pumps, or inverters without messy custom wiring.
Start Battery Support
Start Battery Charging uses excess solar power to keep your vehicle’s start battery topped up once your auxiliary bank is full.
The Start Battery Recovery feature can revive a flat start battery in 15 minutes with a single button press.
Technical Specifications
Model: REDWorks Nomad50 Power Panel
Battery Manager: BCDC Alpha50 R 12V DC Battery Manager
Smart Battery Monitor: Included
Solar Charging: MPPT Solar Regulator
Anderson™ Outputs: 10A, 25A & 50A
Fuse Block: 6 × 30A Blade + 4 × 100A MIDI
Operating Temperature: –20°C to 60°C
Weight: 7.1 kg
Dimensions: H 79mm × W 308mm × D 465mm
Warranty: 2 Years
Included in the Box
? REDWorks Nomad50 Power Panel with BCDC Alpha50 R & Smart Battery Monitor
(Additional wiring kits, batteries, and accessories sold separately.)
