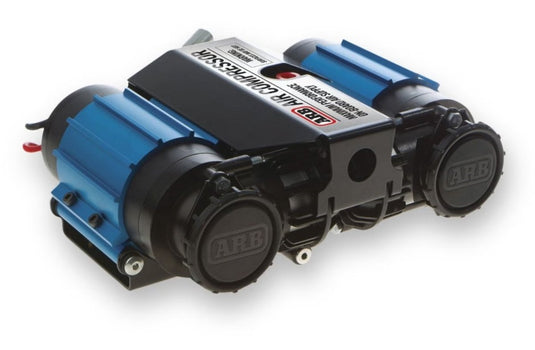

ARB CKMTA12 Twin On-Board Air Compressor 12V
The ARB CKMTA12 Twin On-Board Air Compressor is a high-output 12V brushed air compressor designed for serious 4WD touring, off-road travel and dependable tyre inflation. Permanently mounted to your vehicle, this ARB twin compressor provides a reliable source of compressed air for inflating tyres, operating ARB Air Lockers and supporting a wide range of off-road air needs when paired with the right accessories.
Built for harsh Australian conditions, the CKMTA12 features a twin motor design that delivers class-leading airflow, making it one of the fastest tyre inflation options in the ARB compressor range. Its durable construction, sealed design and integrated protection features help it withstand dust, moisture, heat, vibration and the demands of remote touring.
Key Features
- ARB twin motor brushed compressor design for high air output
- 12V on-board vehicle-mounted compressor
- Ideal for fast tyre inflation after off-road driving
- Suitable for ARB Air Locker activation with optional accessories
- Can support many air tools when used with an optional 4L air tank
- 100% duty cycle for consistent performance
- Sealed for moisture and dust resistance
- Hard-anodised cylinder bores to help reduce friction
- Teflon-impregnated carbon fibre piston seals for long service life
- Integrated pressure switch and relays
- Over-pressure safety valve equipped
- Internal thermal protection to help prevent overheating
- Heavy-duty circuit protection with in-line maxi fuses
- Includes wiring loom, relay, pressure switch and mounting hardware
- Backed by ARB’s 3-year warranty
Why Choose the ARB CKMTA12?
Whether you are airing up after a day on the tracks, setting up an on-board air system or building a touring-ready 4x4, the ARB CKMTA12 delivers dependable air performance when you need it most. Its compact on-board design keeps compressed air ready at all times, while the twin motor layout provides the airflow required for larger tyres and demanding off-road use.
Specifications
- Product Code: CKMTA12
- Type: Twin compressor
- Voltage: 12V DC
- Compressor Style: Brushed
- Product Classification: On-board
- Duty Cycle: 100%
- Maximum Air Flow: Up to 174.4L/min at 0kPa
- Air Flow at 200kPa: Up to 131.8L/min
- Current Rating at 0kPa: 28.4A at 20°C
- Current Rating at 200kPa: 50.4A at 20°C
- Switch: Pressure differential switch
- Overheating Protection: Yes
- Filter Type: Particulate filter
- Net Weight: 8.8kg
- Warranty: 3 years
Inclusions
- ARB CKMTA12 twin on-board air compressor
- Full wiring loom
- Relay
- Pressure switch
- Multi-position mounting bracket
- Universal mounting hardware
Applications
- 4WD and off-road tyre inflation
- ARB Air Locker activation with optional accessories
- On-board compressed air systems
- Touring, camping and remote travel setups
- Air tool use when paired with a suitable optional air tank
For a powerful, permanently mounted 4x4 air solution, the ARB CKMTA12 Twin On-Board Air Compressor is a proven choice for off-road drivers who need fast tyre inflation, reliable performance and durable ARB engineering.
