ARB Compressor Bracket Kit — Toyota Hilux Dual Cab (2015-on) Behind-Seat (3514111)
Vehicle-Specific Behind Rear Seat Suits CKMA12 / CKSA12Create a clean, protected mounting location for your ARB on-board air. This steel bracket tucks a single ARB compressor behind the Hilux dual-cab rear seat, with a neat switch plate and provision for an air coupling—so tyre inflation is quick without cluttering your engine bay.
Why you’ll love it
- Factory-style placement: Secure, rattle-free mount behind the rear seat keeps the compressor out of sight and protected.
- Quick access: Includes a dedicated switch mount plate and a tidy path for the hose/coupling near the rear seat base.
- Locker-ready: Supports optional ARB Air Locker solenoids and ARB LINX PRV for neat plumbing and pressure control.
- Built to tour: Robust bracketry and hardware designed for long-term reliability on- and off-road.
Vehicle compatibility
Toyota Hilux Dual Cab (2015-on) — under/behind rear seat, left-hand side. Suits ARB CKMA12 (High Output) or CKSA12 (Locker) compressors. Not designed for the CKMTA12 twin.
Specifications
- Part number: 3514111
- Mount location: Behind rear seat (LH side), dual cab only
- Compressor compatibility: CKMA12 or CKSA12 (with optional Air Locker solenoids / ARB LINX PRV)

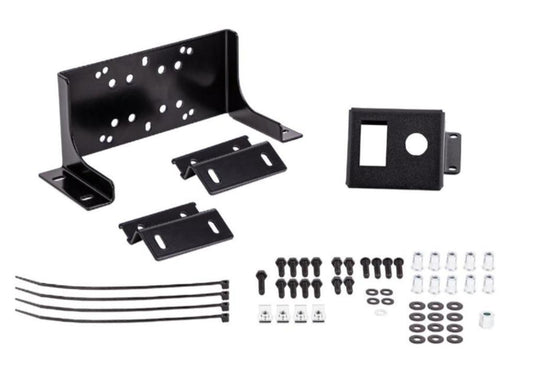

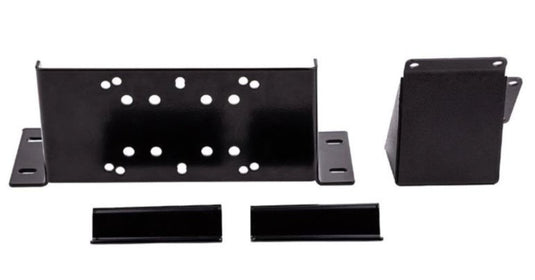

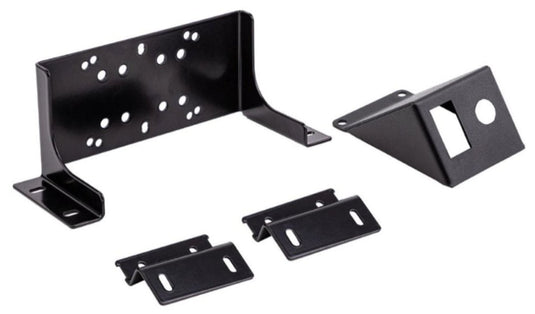

Inclusions
- Compressor mounting bracket (main)
- 2 × mounting base brackets (feet)
- Switch mount plate (rear seat area)
- Hardware & fitting kit (M6 bolts/screws, flat washers, U-nuts, M6 nutserts, machined nut, cable ties)
- Detailed fitting instructions
Best for
- Tourers who want a protected, in-cab compressor placement
- Air Locker setups needing tidy solenoid mounting
- Fast tyre inflation with hose access beside the rear seat
What you may also need
- ARB CKMA12 or CKSA12 compressor
- ARB Air Locker Manifold Kit (171503) if running lockers
- Panel-mount quick-connect air coupling & hose kit
