ARB Behind-Seat Compressor Mount Bracket — Ford Ranger PX Dual Cab (3540320)
Vehicle Specific Behind Rear Seat Suits CKMA12 / CKSA12 Create a clean, protected mounting location for your ARB on-board air. This steel bracket tucks a single ARB compressor behind the Ranger’s rear seat and brings the quick-connect air coupling and switch to the rear passenger B-pillar for easy access—no need to flip the seat to use your compressor.
Why you’ll love it
- Factory-style placement: Secure, rattle-free mount behind the rear seat keeps the compressor out of sight and protected.
- Quick access: Air hose coupling and switch sit beside the rear seat, so airing up is fast and fuss-free.
- Locker-ready: Supports remote mounting of ARB Air Locker and LINX solenoids for neat plumbing and wiring.
- Steel construction: Durable, satin-finish steel bracketry built for touring and tradie duty.
Vehicle Compatibility
Designed for Ford Ranger Dual Cab — PX, PX2, PX3 (Australia)
Specifications
- Part Number: 3540320
- Mount Location: Behind rear seat (dual cab)
- Compressor Compatibility: ARB CKMA12 (High Output) or CKSA12 (Locker) single compressors
- Materials/Finish: Steel, satin black
- Access Points: Switch & quick-connect air coupling at rear passenger B-pillar

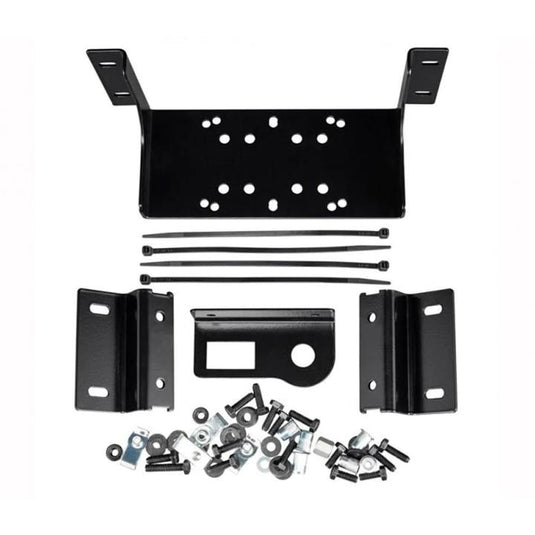

Inclusions
- Main compressor mount and base brackets
- Switch mount plate (B-pillar)
- Hardware kit: M6 bolts, flange nuts, flat washers, U-nuts, nutserts, machined nut, cable ties
- Fitting instructions
Fitment notes
- This bracket is for single ARB compressors (CKMA12 or CKSA12). It is not for the CKMTA12 twin.
- Nutserts are installed into the rear floor; follow the supplied guide and torque specs.
Best for
- Tourers who want protected, in-cab compressor placement
- Air Locker setups needing tidy solenoid mounting
- Quick tyre inflation with the hose coupling right by the rear seat
What you may also need
- ARB CKMA12 High Output or CKSA12 Locker Compressor
- ARB Air Locker Solenoids (if running lockers)
-
ARB Hose Kit / air chuck & coupling
